Item Code: GH-21502-C

Horizontal Toggle Clamp. Overall Height 39mm. Overall Length 82mm. Holding Force 150daN.

Item Code: GH-21502-C

Horizontal Toggle Clamp. Overall Height 39mm. Overall Length 82mm. Holding Force 150daN.

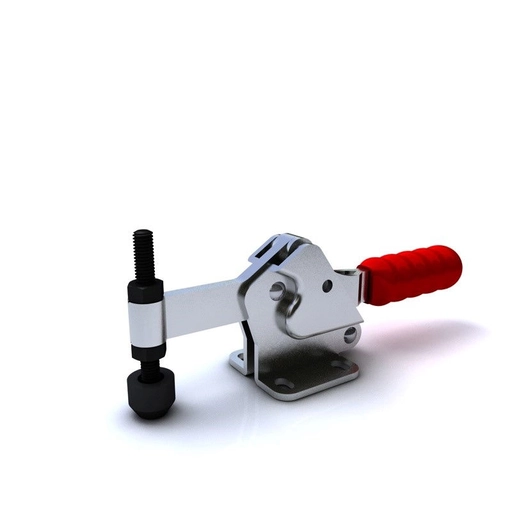

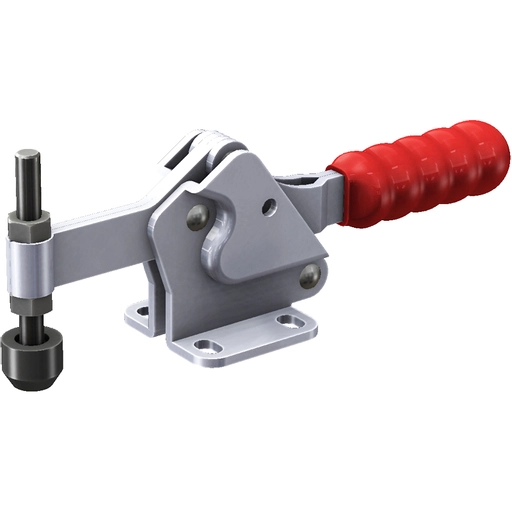

GH-21502-C Horizontal Toggle Clamp Flat Base Fixed Arm Size 150daN

Holding Force: 150daN
Arm Opens: 93°
Handle Opens: 76°
Weight: 0.24Kg
Spindle Set Supplied: SA-065010 + NC-06

What's In The Bag
GH-21502-C Toggle Clamp
SA-065010 M6x50mm Spindle With Nuts
NC-06 Neoprene Cap

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC

Quick Links

50+ in stock

Fixed
Flat
101-200kg
0-50mm
51-100mm
21-30mm
26-50mm
M6
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£14.54  ea. Excl VAT £17.45  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £13.38 8%
30 - 49 £12.65 13%
50 + £12.07 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeFixed
Base TypeFlat
Holding Force101-200kg
Height0-50mm
Total Length51-100mm
Underarm Height21-30mm
Arm Length26-50mm
Spindle SizeM6
Download STP
GH-21502-C Datasheet
