Item Code: GH-201-C

Horizontal Toggle Clamp. Overall Height 39mm. Overall Length 147mm. Holding Force 100daN.

Item Code: GH-201-C

Horizontal Toggle Clamp. Overall Height 39mm. Overall Length 147mm. Holding Force 100daN.

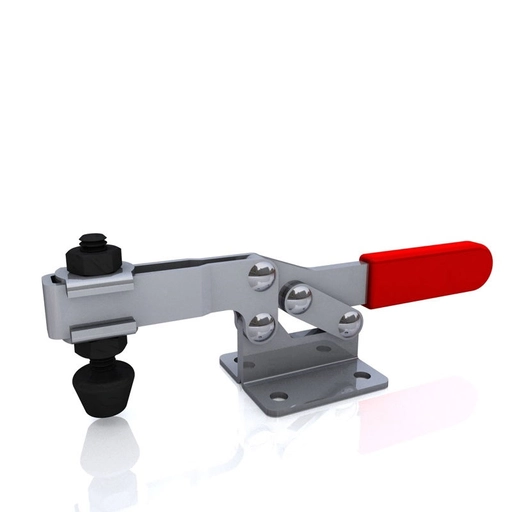

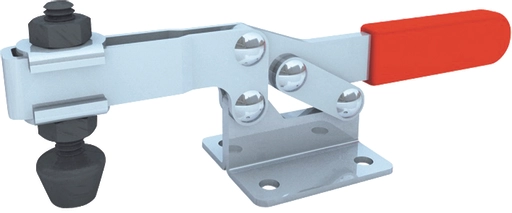

GH-201-C Horizontal Toggle Clamp Flat Base Slotted Arm Size 100daN

Holding Force: 100daN
Arm Opens: 79°
Handle Opens: 87°
Weight: 0.14Kg
Spindle Supplied: FC-064410
Flanged Washers Supplied: FW-141

What's In The Bag
GH-201-C Toggle Clamp
FC-064410 M6x44mm Neoprene Tipped Spindle With Nuts
FW-141 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Quick Links

50+ in stock

Adjustable
Flat
0-100Kg
0-50mm
101-150mm
21-30mm
26-50mm
M6
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£11.08  ea. Excl VAT £13.30  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £10.19 8%
30 - 49 £9.64 13%
50 + £9.20 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeAdjustable
Base TypeFlat
Holding Force0-100Kg
Height0-50mm
Total Length101-150mm
Underarm Height21-30mm
Arm Length26-50mm
Spindle SizeM6
Download STP

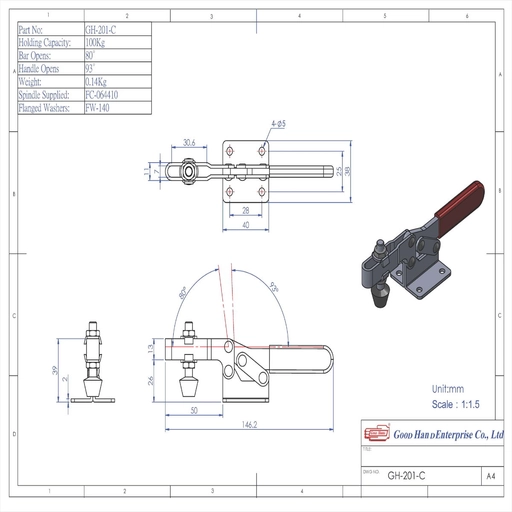

GH-201-C Datasheet
