Item Code: GH-22100

Horizontal Toggle Clamp. Overall Height 39mm. Overall Length 142mm. Holding Force 68daN.

Item Code: GH-22100

Horizontal Toggle Clamp. Overall Height 39mm. Overall Length 142mm. Holding Force 68daN.

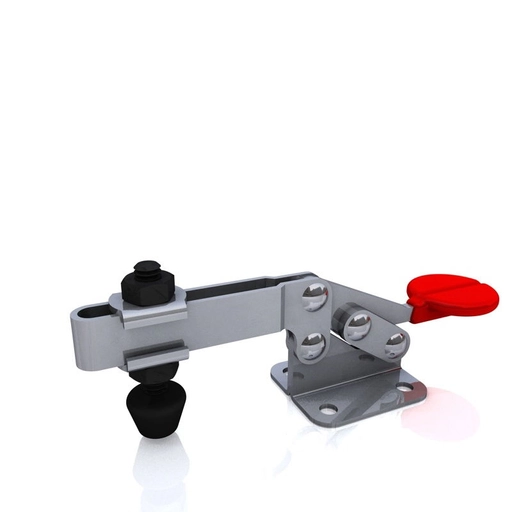

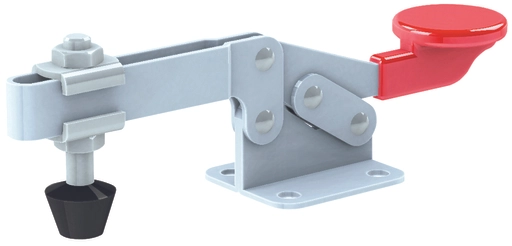

GH-22100 Horizontal Toggle Clamp Flat Base Slotted Arm Size 68daN

Holding Force: 68daN
Arm Opens: 90°
Handle Opens: 90°
Weight: 0.11Kg
Spindle Supplied: FC-064410
Flanged Washers Supplied: FW-140

What's In The Bag
GH-22100 Toggle Clamp
FC-064410 M6x44mm Neoprene Tipped Spindle With Nuts
FW-140 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Quick Links

50+ in stock

Adjustable
Flat
0-100Kg
0-50mm
101-150mm
21-30mm
51-75mm
M6
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£9.99  ea. Excl VAT £11.99  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £9.19 8%
30 - 49 £8.69 13%
50 + £8.29 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeAdjustable
Base TypeFlat
Holding Force0-100Kg
Height0-50mm
Total Length101-150mm
Underarm Height21-30mm
Arm Length51-75mm
Spindle SizeM6
Download STP

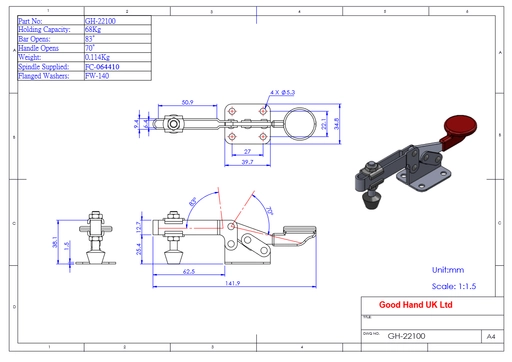

GH-22100 Datasheet
