Item Code: GH-201-B

Horizontal Toggle Clamp. Overall Height 38mm. Overall Length 144mm. Holding Force 90daN.

Item Code: GH-201-B

Horizontal Toggle Clamp. Overall Height 38mm. Overall Length 144mm. Holding Force 90daN.

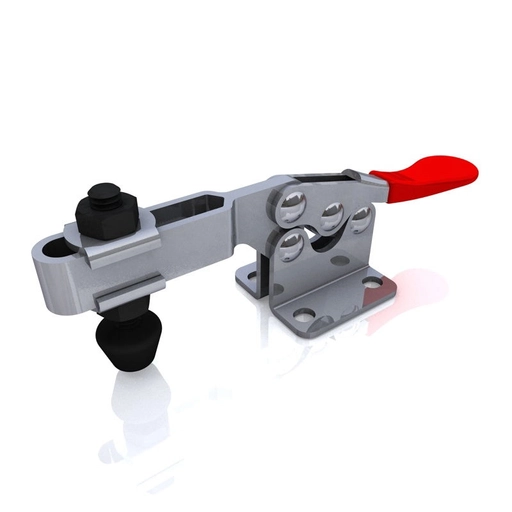

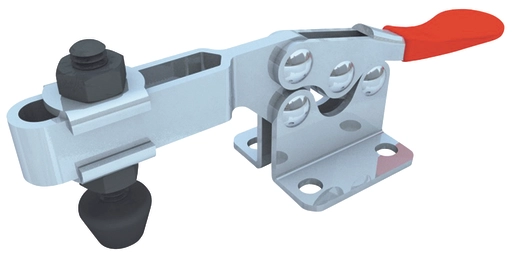

GH-201-B Horizontal Toggle Clamp Flat Base Slotted Arm Size 90daN

Holding Force: 90daN
Arm Opens: 85°
Handle Opens: 60°
Weight: 0.13Kg
Spindle Supplied: FC-064410
Flanged Washers Supplied: FW-141

What's In The Bag
GH-201-B Toggle Clamp
FC-064410 M6x44mm Neoprene Tipped Spindle With Nuts
FW-141 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Quick Links

50+ in stock

51-75mm
Adjustable
Flat
0-50mm
0-100Kg
M6
101-150mm
21-30mm
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£11.41  ea. Excl VAT £13.69  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £10.50 8%
30 - 49 £9.93 13%
50 + £9.47 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm Length51-75mm
Arm TypeAdjustable
Base TypeFlat
Height0-50mm
Holding Force0-100Kg
Spindle SizeM6
Total Length101-150mm
Underarm Height21-30mm
Download STP

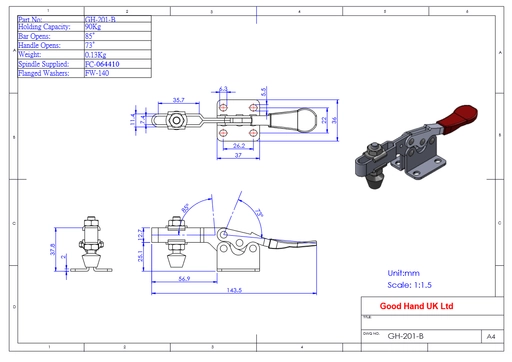

GH-201-B Datasheet
