Item Code: GH-201-R

Horizontal Toggle Clamp. Overall Height 19mm. Overall Length 79mm. Holding Force 27daN.

Horizontal Toggle Clamp. Overall Height 19mm. Overall Length 79mm. Holding Force 27daN.

Item Code: GH-201-R

Horizontal Toggle Clamp. Overall Height 19mm. Overall Length 79mm. Holding Force 27daN.

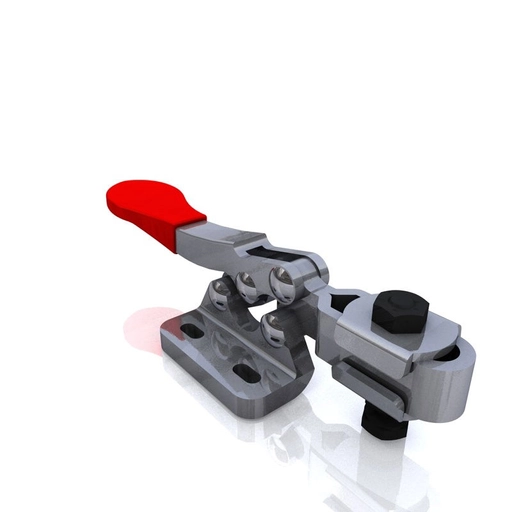

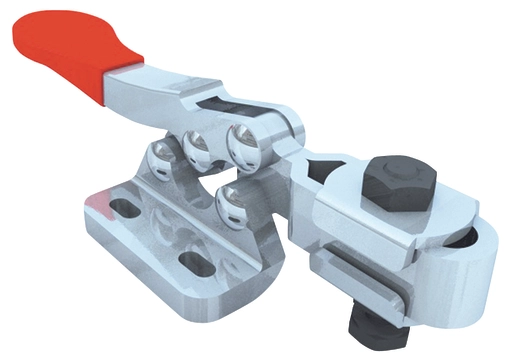

GH-201-R Horizontal Toggle Clamp Right Hand Base Size 27daN

Holding Force: 27daN
Arm Opens: 90°
Handle Opens: 80°
Weight: 0.05Kg
Spindle Supplied: SA-08034
Flanged Washers Supplied: FW-080

What's In The Bag
GH-201-R Toggle Clamp
SA-08034 M8x38mm Spindle With Nuts
FW-080 Flanged Washer

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC

Quick Links

50+ in stock

0-25mm
Adjustable
Flat
0-50mm
0-100Kg
M8
51-100mm
0-20mm
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£8.58  ea. Excl VAT £10.30  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £7.89 8%
30 - 49 £7.46 13%
50 + £7.12 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm Length 0-25mm
Arm Type Adjustable
Base Type Flat
Height 0-50mm
Holding Force 0-100Kg
Spindle Size M8
Total Length 51-100mm
Underarm Height 0-20mm
Download STP

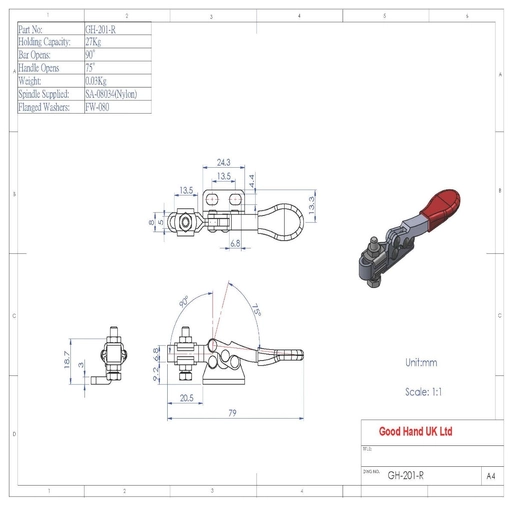

GH-201-R Datasheet
