Item Code: GH-20752-C

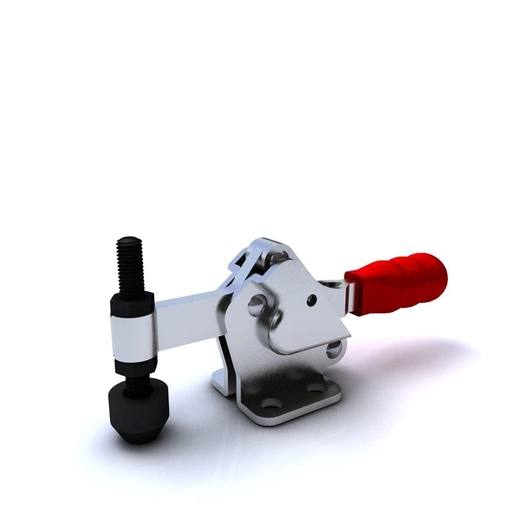

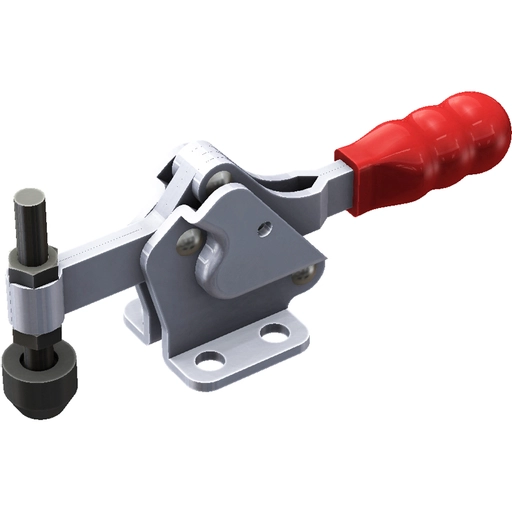

Horizontal Toggle Clamp. Overall Height 19mm. Overall Length 28mm. Holding Force 75daN.

Item Code: GH-20752-C

Horizontal Toggle Clamp. Overall Height 19mm. Overall Length 28mm. Holding Force 75daN.

GH-20752-C Horizontal Toggle Clamp Flat Base Fixed Arm Size 75daN

Holding Force: 75daN
Arm Opens: 96°
Handle Opens: 78°
Weight: 0.09Kg
Spindle Set Supplied: SA-053508 + NC-05

What's In The Bag
GH-20752-C Toggle Clamp
SA-053508 M5x35mm Spindle With Nuts

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC

Quick Links

50+ in stock

Fixed
Flat
0-100Kg
0-50mm
51-100mm
0-20mm
26-50mm
M5
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£11.56  ea. Excl VAT £13.87  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £10.64 8%
30 - 49 £10.06 13%
50 + £9.59 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeFixed
Base TypeFlat
Holding Force0-100Kg
Height0-50mm
Total Length51-100mm
Underarm Height0-20mm
Arm Length26-50mm
Spindle SizeM5
Download STP

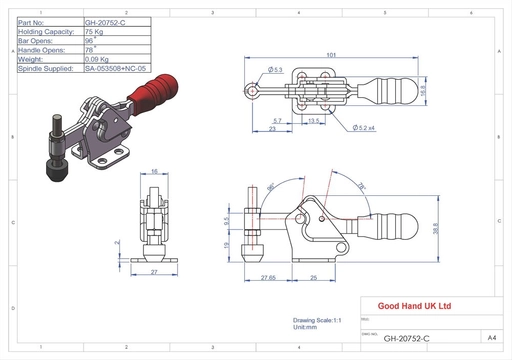

GH-20752-C Datasheet
