Item Code: GH-201-A

Horizontal Toggle Clamp. Overall Height 18mm. Overall Length 82mm. Holding Force 27daN

Item Code: GH-201-A

Horizontal Toggle Clamp. Overall Height 18mm. Overall Length 82mm. Holding Force 27daN

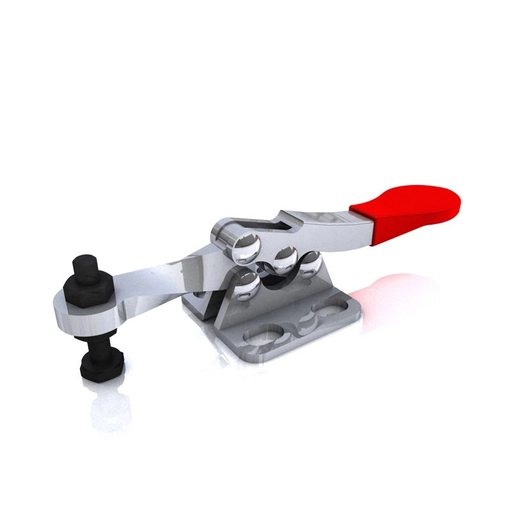

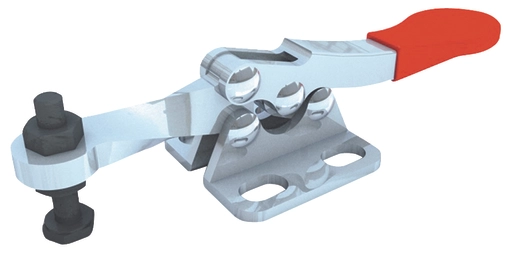

GH-201-A Horizontal Toggle Clamp Flat Base Fixed Arm Size 27daN

Holding Force: 27daN
Arm Opens: 90°
Handle Opens: 80°
Weight: 0.05Kg
Spindle Supplied: SA-042007-BK

What's In The Bag
GH-201-A Toggle Clamp
SA-042007-BK M4x20mm Spindle With Nuts

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC

Quick Links

50+ in stock

Fixed
Flat
0-100Kg
0-50mm
51-100mm
0-20mm
0-25mm
M4
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£8.31  ea. Excl VAT £9.97  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £7.65 8%
30 - 49 £7.23 13%
50 + £6.90 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeFixed
Base TypeFlat
Holding Force0-100Kg
Height0-50mm
Total Length51-100mm
Underarm Height0-20mm
Arm Length0-25mm
Spindle SizeM4
Download STP

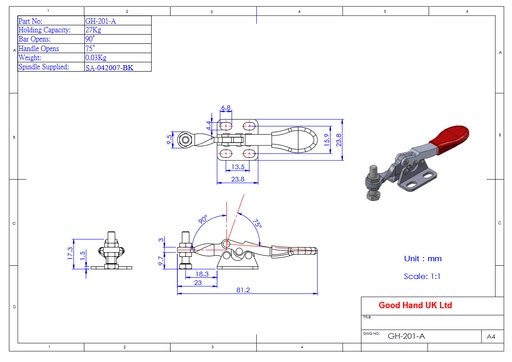

GH-201-A Datasheet
