Item Code: GH-201

Horizontal Toggle Clamp. Overall Height 18mm. Overall Length 79mm. Holding Force 27daN.

Item Code: GH-201

Horizontal Toggle Clamp. Overall Height 18mm. Overall Length 79mm. Holding Force 27daN.

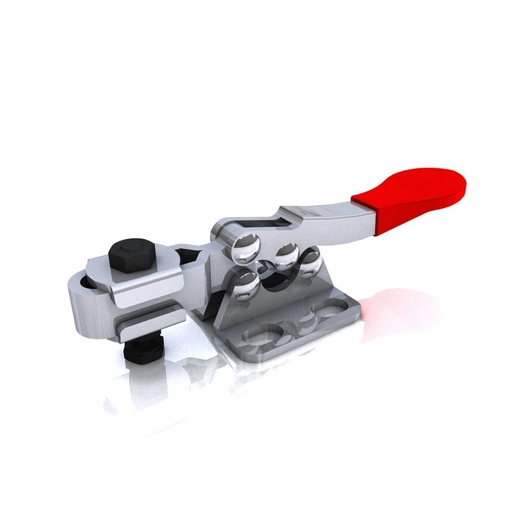

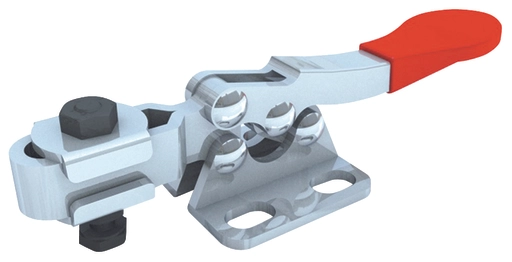

GH-201 Horizontal Toggle Clamp Flat Base Slotted Arm Size 27daN

Holding Force: 27daN
Arm Opens: 90°
Handle Opens: 80°
Weight: 0.043Kg
Spindle Supplied: SA-042007-BK
Flanged Washers Supplied: FW-080

What's In The Bag
GH-201 Toggle Clamp
SA-042007-BK M4x20mm Spindle With Nuts
FW-080 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC

Quick Links

50+ in stock

Adjustable
Flat
0-100Kg
0-50mm
51-100mm
0-20mm
0-25mm
M4
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£8.04  ea. Excl VAT £9.65  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £7.40 8%
30 - 49 £6.99 13%
50 + £6.67 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeAdjustable
Base TypeFlat
Holding Force0-100Kg
Height0-50mm
Total Length51-100mm
Underarm Height0-20mm
Arm Length0-25mm
Spindle SizeM4
Download STP

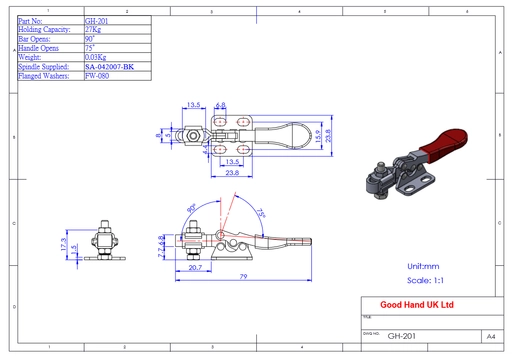

GH-201 Datasheet
