Item Code: GH-24502-B

Horizontal Toggle Clamp. Overall Height 111mm. Overall Length 309mm. Holding Force 450daN.

Item Code: GH-24502-B

Horizontal Toggle Clamp. Overall Height 111mm. Overall Length 309mm. Holding Force 450daN.

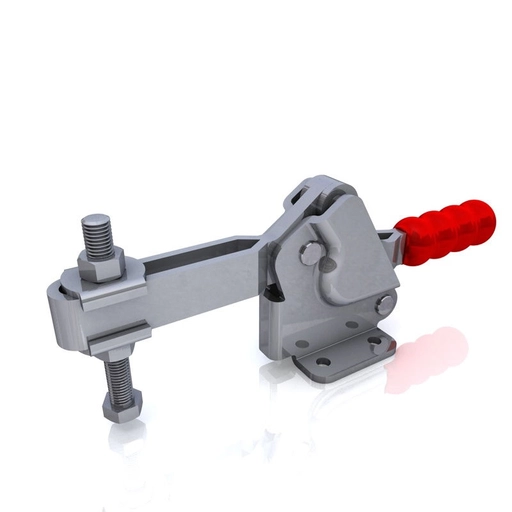

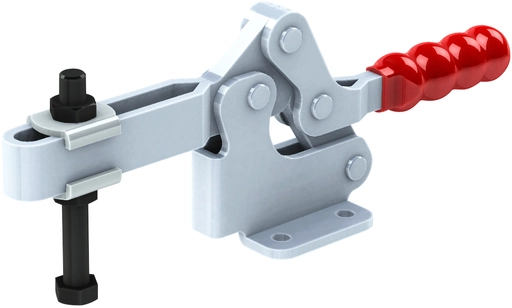

GH-24502-B Horizontal Toggle Clamp Flat Base Slotted Arm Size 450daN

Holding Force: 450daN
Arm Opens: 94°
Handle Opens: 76°
Weight: 1.4Kg
Spindle Supplied: SA-121017
Flanged Washers Supplied: FW-120

What's In The Bag
GH-24502-B Toggle Clamp
SA-121017 M12x100mm Spindle With Nuts
FW-120 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
Handle: uPVC

Quick Links

35 in stock

Adjustable
Flat
401+kg
101-150mm
251+mm
51+mm
101+mm
M12
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£37.37  ea. Excl VAT £44.84  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £34.38 8%
30 - 49 £32.51 13%
50 + £31.02 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm TypeAdjustable
Base TypeFlat
Holding Force401+kg
Height101-150mm
Total Length251+mm
Underarm Height51+mm
Arm Length101+mm
Spindle SizeM12
Download STP

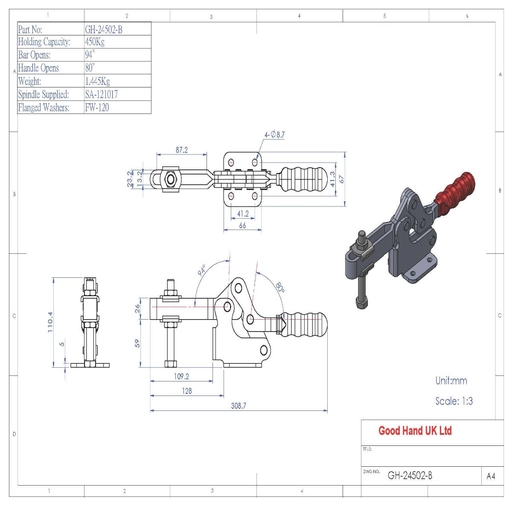

GH-24502-B Datasheet
