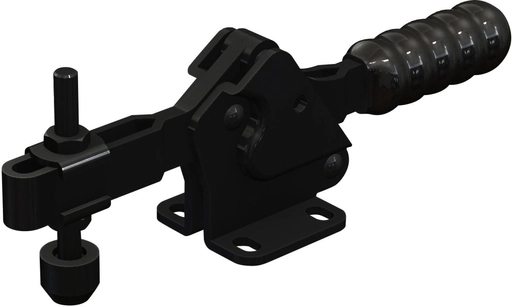

Blackodised Horizontal Toggle Clamp. Overall Height 53mm. Overall Length 174mm. Holding Force 150daN.

Item Code: GH-21502-BB

Blackodised Horizontal Toggle Clamp. Overall Height 53mm. Overall Length 174mm. Holding Force 150daN.

GH-21502-BB_1200x1200.jpg?

Horizontal-Toggle-Clamp_1200x1200.png?

Item Code: GH-21502-BB

Blackodised Horizontal Toggle Clamp. Overall Height 53mm. Overall Length 174mm. Holding Force 150daN.

GH-21502-BB Black Horizontal Toggle Clamp Flat Base Slotted Arm Size 150daN

Holding Force: 150daN
Arm Opens: 93°
Handle Opens: 76°
Weight: 0.25Kg
Spindle Supplied: SA-065010+NC-06 Cap
Flanged Washers Supplied: FW-140

What's In The Bag
GH-21502-BB Toggle Clamp
SA-065010 M6x50mm Spindle With Nuts
FW-140 Flanged Washers
NC-06 Neoprene Cap

Material
Clamp: Blackodised Mild Steel
Spindle: Neoprene Tipped Steel
Handle: uPVC

Quick Links

50+ in stock

Arm Length: 51-75mm
Not available in this option

Arm Type: Adjustable
Not available in this option

Base Type: Flat
Not available in this option

Height: 51-100mm
Not available in this option

Holding Force: 101-200kg
Not available in this option

Spindle Size: M6
Not available in this option

Total Length: 151-200mm
Not available in this option

Underarm Height: 21-30mm
Not available in this option

Not available in this option

M6 x 20mm Spindle 1 Nut Pitch 1.0 - £1.18
M6 x 20mm Spindle 1 Nut Pitch 1.0
Qty

Thread Length: 20mm
Not available in this option

Thread Size: M6
Not available in this option

M6 x 25mm Spindle 2 Nuts Pitch 1.0 - £1.18
M6 x 25mm Spindle 2 Nuts Pitch 1.0
Qty

Thread Length: 25mm
Not available in this option

Thread Size: M6
Not available in this option

M6 x 40mm Spindle 2 Nuts Pitch 1.0 - £1.18
M6 x 40mm Spindle 2 Nuts Pitch 1.0
Qty

Thread Length: 40mm
Not available in this option

Thread Size: M6
Not available in this option

M6 x 50mm Spindle 2 Nuts Pitch 1.0 - £1.18
M6 x 50mm Spindle 2 Nuts Pitch 1.0
Qty

Thread Length: 50mm
Not available in this option

Thread Size: M6
Not available in this option

M6 x 44mm Neoprene Tipped Spindle 2 Nuts - £2.13
M6 x 44mm Neoprene Tipped Spindle 2 Nuts
Qty

Thread Length: 44mm
Not available in this option

Thread Size: M6
Not available in this option

M6 x 50mm Neoprene Tipped Spindle 2 Nuts - £2.13
M6 x 50mm Neoprene Tipped Spindle 2 Nuts
Qty

Thread Length: 50mm
Not available in this option

Thread Size: M6
Not available in this option

M6 x 50mm Black Plated Swivel Foot Spindle 2 Nuts - £3.04
M6 x 50mm Black Plated Swivel Foot Spindle 2 Nuts
Qty

Thread Length: 50mm
Not available in this option

Thread Size: M6
Not available in this option

M6 Neoprene Pad With Threaded Insert - £2.91
M6 Neoprene Pad With Threaded Insert
Qty

For Spindle Size: M6
Not available in this option

Neoprene Cap For M6 Spindles - £0.85
Neoprene Cap For M6 Spindles
Qty

For Spindle Size: M6
Not available in this option

£13.92 ea. Excl VAT £16.70 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Get notified when this product is back in stock

Qty Price per item Savings

15 - 29 £12.81 8%

30 - 49 £12.11 13%

50 + £11.55 17%

Optional Extras

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

M6 x 20mm Spindle 1 Nut Pitch 1.0 - £1.18
M6 x 20mm Spindle 1 Nut Pitch 1.0
Qty

Thread Length: 20mm
Not available in this option

Thread Size: M6
Not available in this option

M6 x 25mm Spindle 2 Nuts Pitch 1.0 - £1.18
M6 x 25mm Spindle 2 Nuts Pitch 1.0
Qty

Thread Length: 25mm
Not available in this option

Thread Size: M6
Not available in this option

M6 x 40mm Spindle 2 Nuts Pitch 1.0 - £1.18
M6 x 40mm Spindle 2 Nuts Pitch 1.0
Qty

Thread Length: 40mm
Not available in this option

Thread Size: M6
Not available in this option

M6 x 50mm Spindle 2 Nuts Pitch 1.0 - £1.18
M6 x 50mm Spindle 2 Nuts Pitch 1.0
Qty

Thread Length: 50mm
Not available in this option

Thread Size: M6
Not available in this option

M6 x 44mm Neoprene Tipped Spindle 2 Nuts - £2.13
M6 x 44mm Neoprene Tipped Spindle 2 Nuts
Qty

Thread Length: 44mm
Not available in this option

Thread Size: M6
Not available in this option

M6 x 50mm Neoprene Tipped Spindle 2 Nuts - £2.13
M6 x 50mm Neoprene Tipped Spindle 2 Nuts
Qty

Thread Length: 50mm
Not available in this option

Thread Size: M6
Not available in this option

M6 x 50mm Black Plated Swivel Foot Spindle 2 Nuts - £3.04
M6 x 50mm Black Plated Swivel Foot Spindle 2 Nuts
Qty

Thread Length: 50mm
Not available in this option

Thread Size: M6
Not available in this option

M6 Neoprene Pad With Threaded Insert - £2.91
M6 Neoprene Pad With Threaded Insert
Qty

For Spindle Size: M6
Not available in this option

Neoprene Cap For M6 Spindles - £0.85
Neoprene Cap For M6 Spindles
Qty

For Spindle Size: M6
Not available in this option

Quick Links

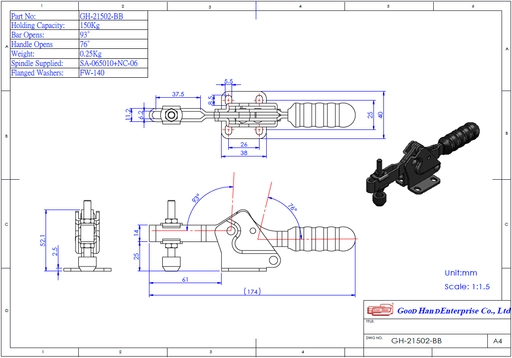

Product Dimensions

Specifications

Arm Length 51-75mm
Arm Type Adjustable
Base Type Flat
Height 51-100mm
Holding Force 101-200kg
Spindle Size M6
Total Length 151-200mm
Underarm Height 21-30mm

Downloads

Download STP
GH-21502-BB Datasheet
