Item Code: GH-20752-BB

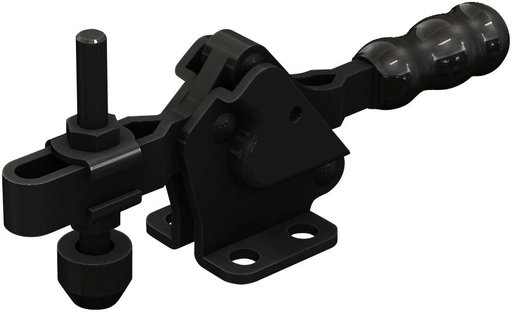

Blackodised Horizontal Toggle Clamp. Overall Height 39mm. Overall Length 112mm. Holding Force 75daN.

Blackodised Horizontal Toggle Clamp. Overall Height 39mm. Overall Length 112mm. Holding Force 75daN.

Item Code: GH-20752-BB

Blackodised Horizontal Toggle Clamp. Overall Height 39mm. Overall Length 112mm. Holding Force 75daN.

GH-20752-BB Black Horizontal Toggle Clamp Flat Base Slotted Arm Size 75daN

Holding Force: 75daN
Arm Opens: 96°
Handle Opens: 78°
Weight: 0.09Kg
Spindle Supplied: SA-054008+NC-05 Cap
Flanged Washers Supplied: FW-100

What's In The Bag
GH-20752-BB Toggle Clamp
SA-054008 M5x40mm Spindle With Nuts
FW-100 Flanged Washers

Material
Clamp: Blackodised Mild Steel
Spindle: Blackodised Steel
Handle: uPVC
Cap: Neoprene

Quick Links

50+ in stock

26-50mm
Adjustable
Flat
0-50mm
0-100Kg
M5
101-150mm
0-20mm
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£10.73  ea. Excl VAT £12.88  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 - 29 £9.87 8%
30 - 49 £9.34 13%
50 + £8.91 17%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm Length26-50mm
Arm TypeAdjustable
Base TypeFlat
Height0-50mm
Holding Force0-100Kg
Spindle SizeM5
Total Length101-150mm
Underarm Height0-20mm
Download STP

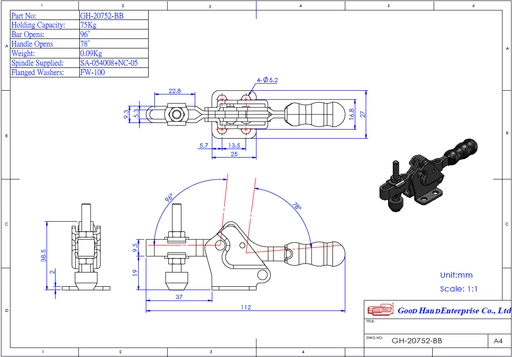

GH-20752-BB Datasheet
