High Temperature Air Amplifier Kit. 21mm Bore. Amplification Ratio 25-1. Includes Filter/Regulator & Shim Set.

Item Code: 121221

High Temperature Air Amplifier Kit. 21mm Bore. Amplification Ratio 25-1. Includes Filter/Regulator & Shim Set.

Item Code: 121221

High Temperature Air Amplifier Kit. 21mm Bore. Amplification Ratio 25-1. Includes Filter/Regulator & Shim Set.

Exair High Temperature Air Amplifiers only require a compressed air connection to work.

High Temperature Air Amplifiers are rated to 700°F (374°C) and made to circulate air in hot environments including inside ovens, furnaces and large molds. Utilizing the Coanda effect, a basic principle of fluidics, Air Amplifiers become a simple, low cost way to circulate air, move smoke, fumes and light materials. Using a small amount of compressed air as their power source, High Temperature Air Amplifiers pull in large volumes of surrounding air to produce high volume, high velocity outlet flows through a fixed air gap. They are quiet and efficient while creating output flows up to 25 times their consumption rate.

Air Consumption: 229L/m
Amplification Ratio: 25:1
Output Air Volume: 4132L/min
Sound Level: 72dBA
All measurements based on 5.5Bar

All items are manufactured with BSP threads or have a suitable adapter provided.

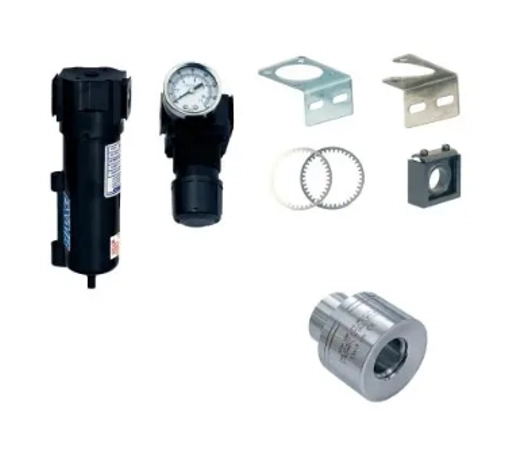

Kit Includes:
(1) 121021 1-1/4" (32 mm) Hight Temp. Air Amplifier
(1) 120321 1-1/4" Super Air Amplifier Shim Set
(1) 9001 Automatic Drain Filter / Separator
(1) 9008 Pressure Regulator with gauge
(1) 9046 Mounting and Coupling Kit for model 9001 & 9008

Quick Links

Dispatch by 22/12/25

Bore Size: 21mm

Style: Air Amplifier With Filter And Shim Set

£894.75 ea. Excl VAT £1073.70 ea. Inc VAT
