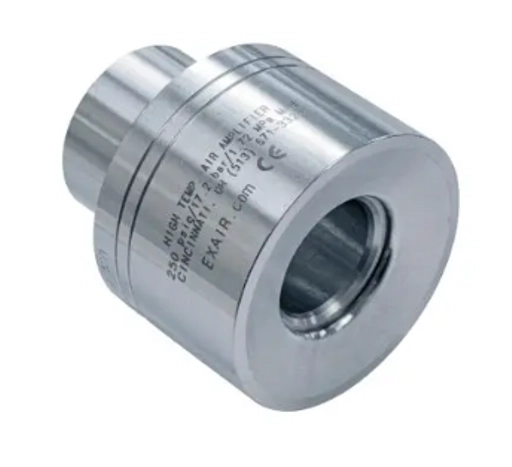

High Temperature Air Amplifier. 21mm Bore. Amplification Ratio 25-1.

Item Code: 121021

High Temperature Air Amplifier. 21mm Bore. Amplification Ratio 25-1.

Item Code: 121021

High Temperature Air Amplifier. 21mm Bore. Amplification Ratio 25-1.

Exair High Temperature Air Amplifiers only require a compressed air connection to work.

High Temperature Air Amplifiers are rated to 700°F (374°C) and made to circulate air in hot environments including inside ovens, furnaces and large molds. Utilizing the Coanda effect, a basic principle of fluidics, Air Amplifiers become a simple, low cost way to circulate air, move smoke, fumes and light materials. Using a small amount of compressed air as their power source, High Temperature Air Amplifiers pull in large volumes of surrounding air to produce high volume, high velocity outlet flows through a fixed air gap. They are quiet and efficient while creating output flows up to 25 times their consumption rate.

Air Consumption: 229L/m
Amplification Ratio: 25:1
Output Air Volume: 4132L/min
Sound Level: 72dBA
All measurements based on 5.5Bar

All items are manufactured with BSP threads or have a suitable adapter provided.
