Item Code: EF1020SS

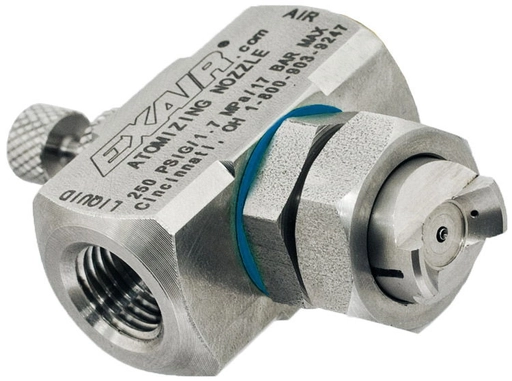

External Mix Narrow Angle Flat Fan Pattern, 7.5 GPH / 28.4 LPH Max

Item Code: EF1020SS

External Mix Narrow Angle Flat Fan Pattern, 7.5 GPH / 28.4 LPH Max

EXAIR's, 1/4 FNPT external mix narrow angle flat fan pattern nozzles are great where a high volume of liquid is needed over a concentrated area. Since they are external mix, airflow and liquid flow can be controlled independently. External mix narrow angle flat fan pattern nozzles are the best choice where thicker liquids for a heavy coating are needed over a narrow band, such as a paint line. For pressure fed applications with independent air and liquid control.

Connection 1/4" NPT
Performance Figures below

Quick Links

Dispatch by 07/07/25

0-50 LPH
Narrow Flat
Qty
Qty

£269.26  ea. Excl VAT £323.11  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
10 + £242.33 10%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty

Quick Links



Max Liquid Consumption0-50 LPH
Spray PatternNarrow Flat

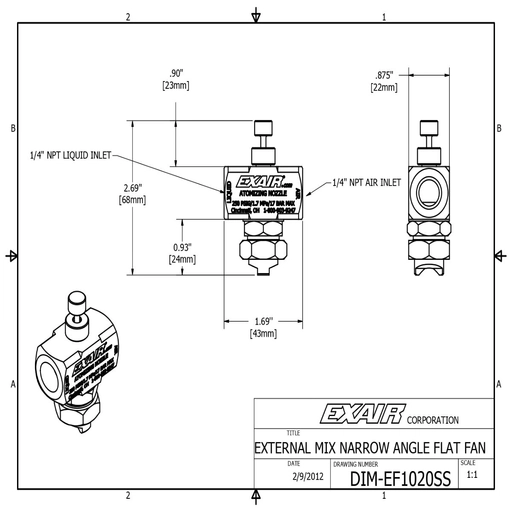

Click For Dimensions
Download STP
