Cast Iron With Keyway No Handle

Cast Iron With Keyway No Handle

Handwheel. 16mm H7 Reamed Hole. 140mm Overall Diameter. With Keyway. Cast Iron.

Cast Iron With Keyway No Handle

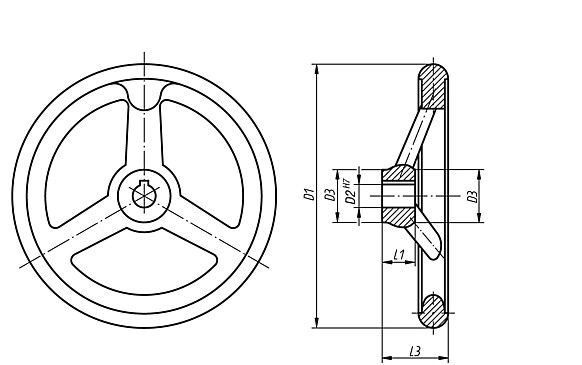

Line drawing placeholder

Move drawing here

B3 D1 D2 D3 DIN L1 L3 T Price (Exc. Tax) Stock Qty basket

Filters
K0671.1080X10
View product 		3 80 10H7 24 DIN 950 16 29 11.4
£19.26
0
K0671.1080X12
View product 		4 80 12H7 24 DIN 950 16 29 13.8
£19.26
0
K0671.1100X10
View product 		3 100 10H7 26 DIN 950 17 33 11.4
£22.90
0
K0671.1100X12
View product 		4 100 12H7 26 DIN 950 17 33 13.8
£22.90
0
K0671.1125X12
View product 		4 125 12H7 28 DIN 950 18 36 13.8
£27.15
0
K0671.1125X14
View product 		5 125 14H7 28 DIN 950 18 36 16.3
£27.15
0
K0671.1140X14
View product 		5 140 14H7 30 DIN 950 19 39 16.3
£31.26
0
K0671.1140X16
View product 		5 140 16H7 30 DIN 950 19 39 18.3
£31.26
0
K0671.1160X14
View product 		5 160 14H7 32 DIN 950 20 40 16.3
£34.03
0
K0671.1160X16
View product 		5 160 16H7 32 DIN 950 20 40 18.3
£34.03
1
K0671.1180X16
View product 		5 180 16H7 36 DIN 950 22 43 18.3
£47.06
0
K0671.1180X18
View product 		6 180 18H7 36 DIN 950 22 43 20.8
£47.06
0
K0671.1200X18
View product 		6 200 18H7 38 DIN 950 24 45 20.8
£51.15
0
K0671.1200X22
View product 		6 200 22H7 38 DIN 950 24 45 24.8
£51.15
0
K0671.1250X22
View product 		6 250 22H7 45 DIN 950 28 50 24.8
£80.27
0
K0671.1250X26
View product 		8 250 26H7 45 DIN 950 28 50 29.3
£80.27
0
K0671.1315X26
View product 		8 315 26H7 53 DIN 950 33 56 29.3
£120.92
0
K0671.1315X30
View product 		8 315 30H7 53 DIN 950 33 56 33.3
£120.92
0
K0671.1400X30
View product 		8 400 30H7 65 DIN 950 38 63 33.3
£218.28
0
K0671.1400X34
View product 		10 400 34H7 65 DIN 950 38 63 37.3
£218.28
0
K0671.1500X34
View product 		10 500 34H7 78 DIN 950 45 72 37.3
£442.94
0
K0671.1500X40
View product 		12 500 40H7 78 DIN 950 45 72 43.3
£442.94
0
