Choosing The Right Line Vac

Do you have operators climbing steps to dump bags of material into hoppers?

Do you need a faster way to remove scrap from a process?

Do you have budgetary constraints in trying to move material from point A to point B?

If you answered yes to any of these, EXAIR may have a simple solution.  We manufacture an air-operated conveyor that does not have any moving parts, has a very compact design, and generates a high throughput capacity.  They can attach easily to standard hoses, pipes, or sanitary flanges to convert your piping system into a powerful conveying system.

EXAIR manufactures these air-operated conveyors and trademarks them as Line Vacs.

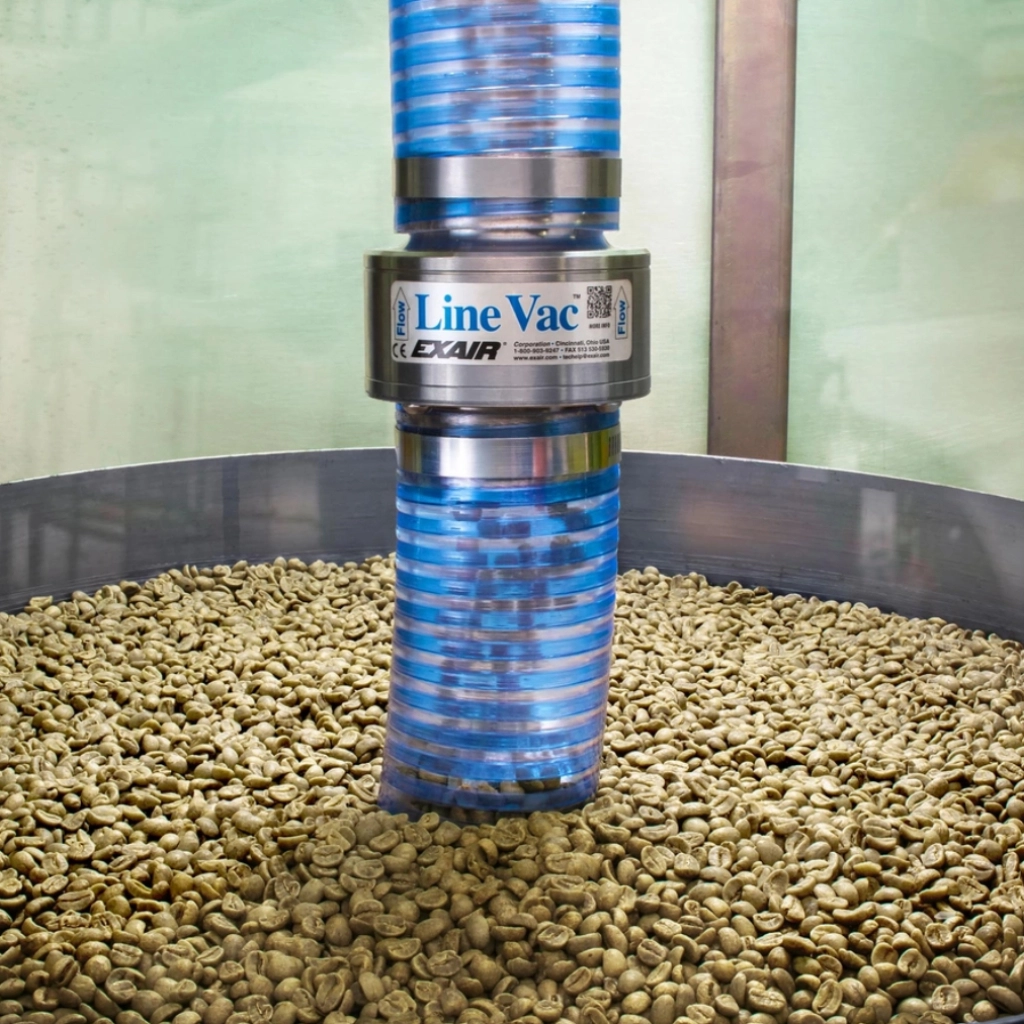

EXAIR Line Vacs use a small amount of compressed air to generate a powerful vacuum by a Venturi effect.  The unique design of the generator creates a high velocity of air to create a low pressure on one side and a powerful thrust on the other.  The Line Vac can pick up and move solid material from light and fluffy batting to steel components.  They can transfer product horizontally up to 100 feet (30 meters) away and vertically up to 20 feet (6 meters) high.  You can watch a video on the operation of a Line Vac here  Compared to other vacuum or conveying systems, the EXAIR Line Vacs are very quiet, rugged, and powerful.  EXAIR makes a variety of Line Vacs in different sizes, styles, and materials to best fit your application.

The Standard Line Vac is the most versatile product in this family.  Good Hand UK stock a wide range of sizes, materials, and styles for targeting the best solution for moving material.  We have two types of connections, slip-on ends for hose connections and threaded ends for pipe connection.  EXAIR can swap the connections with a slip-on hose on one end with a threaded connection on the other.  They range in diameters from 3/8” (10mm) up to 5” (127mm).  We manufacture the Line Vacs in aluminum, 303SS, and 316SS; but don’t let that deter you if your need them manufactured in any other type of material.  We have high temperature models that can withstand temperatures up to 900 deg. F (482 deg. C).

These Line Vacs work great in applications for loading plastic pellets in hoppers, discarding scrap pieces, trim removal, and transferring material.  If an operator has to carry a container of dry material and climb stairs, a Line Vac could be a much better alternative.

The Heavy Duty Line Vacs are made from a hardened alloy steel for abrasion resistance.  The generators inside these Line Vacs are more powerful than the standard models; so, that they can convey heavier materials at higher conveyance rates.  They can reach rates as high as 40 lbs./min. (18.2Kg/min) of material.  With the hardened alloy construction, they are great for sand blasting applications, ceramic, glass and steel shot.  They are manufactured with inlet and outlet connections for slip-on hoses or threaded pipes.  Good Hand UK stocks the Heavy Duty Line Vacs in the range from ¾” (19mm) to 3” (76mm) for both hose and NPT connections.  These Line Vacs are our most powerful design with great wear resistance.

Introducing the NEW  ULTRA DUTY LINE VAC. Until recently the Heavy Duty Line Vac was our most wear resistant unit. But now the ULTRA DUTY LINE VAC has been introduced to deal with the most hard wearing of applicaions. Using a ceramic insert these units are the go to for all abrasive and heavy materials.

On the other end of the spectrum, we have the Light Duty Line Vac. They use much less compressed air than the other Line Vacs which work great for moving lightweight materials over short distances. They can also be used for removing smoke and fumes from a work area.  The Light Duty Line Vac ranges from ¾” (19mm) up to 6” (152mm) diameter for slip-on hose connections.  This two-piece design provides an effective way of moving material at a lower cost.  It can be used in applications like hopper loading, fiber tensioning, filling operations, and smoke removal.   For moving material within a short distance, the Light Duty Line Vac could be the proper product to use.

The Sanitary Flange Line Vacs can fit within sanitary piping systems to convert pipes into a useful conveyor for bulk material and waste removal.  They use an ISO2852 flange for easy disassembly and cleaning to reduce bacterial entrapment.  They are made from 316 stainless steel material for superior corrosion resistance.  They come in four different sizes to fit the sanitary flanges from 1-½” up to a 3” flange.  For sensitive applications where cleanliness is a major requirement, the Sanitary Flange Line vacs are manufactured for these conditions.

With all of the EXAIR Line Vacs above, they can be sold as kits.  A kit will include a filter, regulator and a bracket.  (A bracket is not sold with the Light Duty Line Vac kits.)  The filter will help keep the Line Vac clean as well as the product that it is conveying.  The regulator is a great tool to vary the conveyance rates for better control.  The bracket helps to mount the Line Vac to a sturdy base for support.  A useful accessory to conveniently hide the compact Line Vac for ease of use and operation.

If you need to convey solid materials in a quick and easy way, an EXAIR Line Vac could be a solution for you.  We have them in a variety of formats to match your application.  They are compact, quiet, and simple to use without any moving parts.  As compared to a conveying system which is bulky and rigid, the Line Vacs are flexible and inexpensive.  Ergonomically, they can save the back-wrenching labor of picking up bags, climbing stairs, and dumping material into hoppers.  If you want to know if the EXAIR Line Vac could work for you, please contact our sales office on 01908 221151 or sales@goodhanduk.co.uk
