K0160 - Aluminium Handwheels Diameter 80-500mm
Back to Aluminium With Keyway No Handle

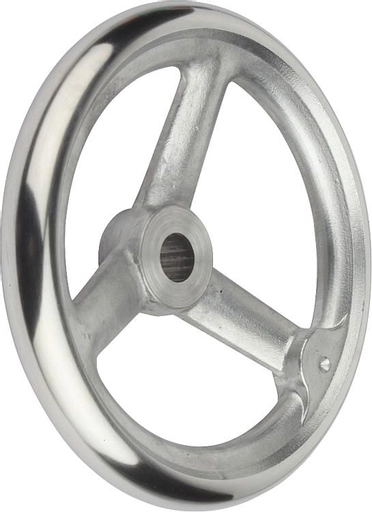

Handwheel. 26mm H7 Reamed Hole. 315mm Overall Diameter. Aluminium.

Item Code: K0160.1315X26

Handwheel. 26mm H7 Reamed Hole. 315mm Overall Diameter. Aluminium.

Z06271-06273Nabennut-nn--en-722x750_1200x1200.jpg?

Item Code: K0160.1315X26

Handwheel. 26mm H7 Reamed Hole. 315mm Overall Diameter. Aluminium.

Material:
Handwheel and machine handle in aluminium;
axle part in steel, black oxide finish

Surface finish:
Wheel rim turned and polished, centre bore is concentric and parallel with outside of handle to IT 12.

Quick Links

Dispatch by 11/06/25

D3: 53

L1: 33

L3: 56

D1: 315

T: 29.3

D2: 26H7

DIN: DIN 950

B3: 8

£90.31 ea. Excl VAT £108.37 ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
5 +	£76.76	15%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

Description

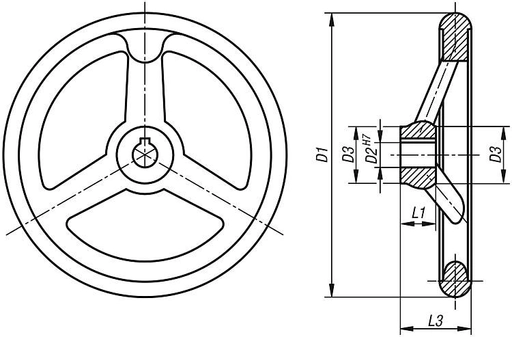

Product Dimensions

D3	53
L1	33
L3	56
D1	315
T	29.3

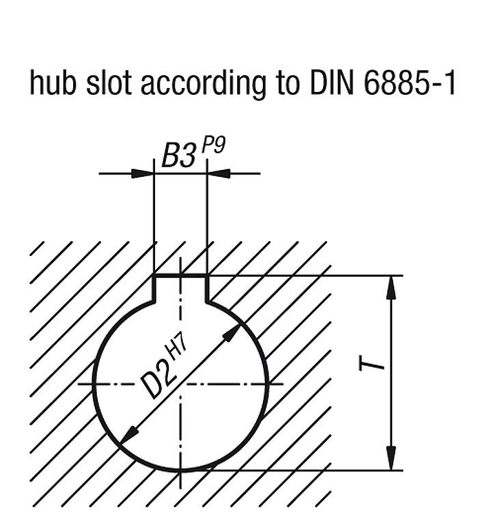

D2	26H7
DIN	DIN 950
B3	8

Specifications

Diameter	315mm
Connection Type	Keyway
Connection Size	26mm
Material	Aluminium
Grip Type	No Grip

Handwheel. 26mm H7 Reamed Hole. 315mm Overall Diameter. Aluminium.

Handwheel. 26mm H7 Reamed Hole. 315mm Overall Diameter. Aluminium.
