Item Code: K0160.4125X12

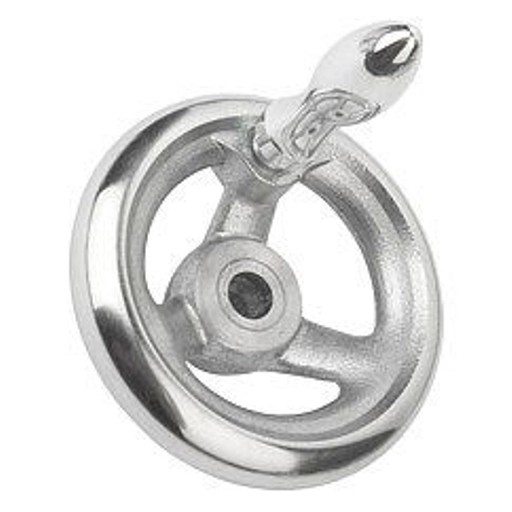

Handwheel. Revolving Handle. 12mm H7 Reamed Hole. 125mm Overall Diameter. Aluminium.

Item Code: K0160.4125X12

Handwheel. Revolving Handle. 12mm H7 Reamed Hole. 125mm Overall Diameter. Aluminium.

Material:
Handwheel and machine handle in aluminium;
axle part in steel, black oxide finish Surface finish:
Wheel rim turned and polished, centre bore is concentric and parallel with outside of handle to IT 12.

Quick Links

Dispatch by 05/07/25

125
12H7
28
DIN 950
18
36
ø20 x M8 x 67

£29.44  ea. Excl VAT £35.33  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
15 + £24.14 18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material:
Handwheel and machine handle in aluminium;
axle part in steel, black oxide finish Surface finish:
Wheel rim turned and polished, centre bore is concentric and parallel with outside of handle to IT 12.

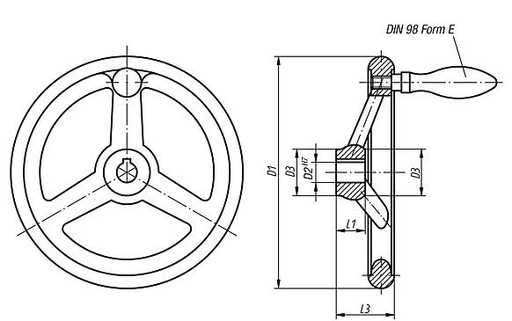

D1125
D212H7
D328
DINDIN 950
L118
L336
revolving grip DIN 98 Form Eø20 x M8 x 67
Diameter125mm
Connection TypeReamed Hole
Connection Size12mm
MaterialAluminium
Grip TypeRevolving
