Aluminium Plain Hole Fixed Handle

Aluminium Plain Hole Fixed Handle

Material:
Handwheel and machine handle in aluminium;
axle part in steel, black oxide finish Surface finish:
Wheel rim turned and polished, centre bore is concentric and parallel with outside of handle to IT 12.
Handwheel. Fixed Handle. 26mm H7 Reamed Hole. 315mm Overall Diameter. Aluminium.

Aluminium Plain Hole Fixed Handle

Line drawing placeholder

Move drawing here

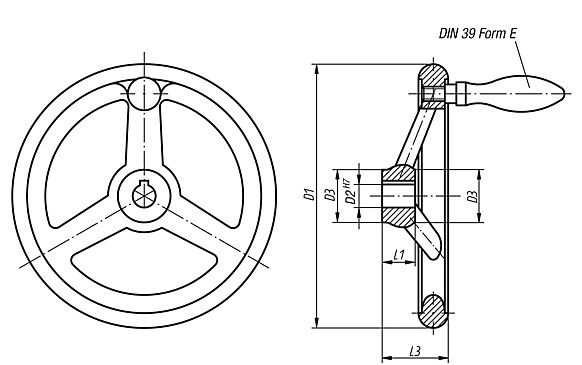

D1 D2 D3 DIN fixed machine handle DIN 39 Form E L1 L3 Price (Exc. Tax) Stock Qty basket

Filters
K0160.2080X10
View product 		80 10H7 24 DIN 950 ø16 x M6 x 50 16 29
£20.09
0
K0160.2080X12
View product 		80 12H7 24 DIN 950 ø16 x M6 x 50 16 29
£20.09
0
K0160.2100X10
View product 		100 10H7 26 DIN 950 ø16 x M6 x 50 17 33
£22.23
0
K0160.2100X12
View product 		100 12H7 26 DIN 950 ø16 x M6 x 50 17 33
£22.23
0
K0160.2125X12
View product 		125 12H7 28 DIN 950 ø20 x M8 x 64 18 36
£27.81
0
K0160.2125X14
View product 		125 14H7 28 DIN 950 ø20 x M8 x 64 18 36
£27.81
0
K0160.2140X14
View product 		140 14H7 30 DIN 950 ø20 x M8 x 64 19 39
£30.92
0
K0160.2140X16
View product 		140 16H7 30 DIN 950 ø20 x M8 x 64 19 39
£30.92
0
K0160.2160X14
View product 		160 14H7 32 DIN 950 ø25 x M10 x 80 20 40
£36.83
0
K0160.2160X16
View product 		160 16H7 32 DIN 950 ø25 x M10 x 80 20 40
£36.83
0
K0160.2180X16
View product 		180 16H7 37 DIN 950 ø25 x M10 x 80 22 43
£41.38
0
K0160.2180X18
View product 		180 18H7 37 DIN 950 ø25 x M10 x 80 22 43
£41.38
0
K0160.2200X18
View product 		200 18H7 38 DIN 950 ø25 x M10 x 80 24 45
£47.79
0
K0160.2200X22
View product 		200 22H7 38 DIN 950 ø25 x M10 x 80 24 45
£47.79
0
K0160.2250X22
View product 		250 22H7 45 DIN 950 ø32 x M12 x 100 28 50
£75.00
0
K0160.2250X26
View product 		250 26H7 45 DIN 950 ø32 x M12 x 100 28 50
£75.00
0
K0160.2315X26
View product 		315 26H7 53 DIN 950 ø32 x M12 x 100 33 56
£108.00
0
K0160.2315X30
View product 		315 30H7 53 DIN 950 ø32 x M12 x 100 33 56
£108.00
0
K0160.2400X30
View product 		400 30H7 65 DIN 950 ø36 x M16 x 112 38 63
£196.13
0
K0160.2400X34
View product 		400 34H7 65 DIN 950 ø36 x M16 x 112 38 63
£196.13
0
K0160.2500X34
View product 		500 34H7 78 DIN 950 ø36 x M16 x 112 45 72
£305.92
0
K0160.2500X40
View product 		500 40H7 78 DIN 950 ø36 x M16 x 112 45 72
£305.92
0
