Item Code: GH-12050-UA

PneumaticToggle Clamp. Overall Length 183mm. Overall Height 60mm. Holding Force 91daN.

Item Code: GH-12050-UA

PneumaticToggle Clamp. Overall Length 183mm. Overall Height 60mm. Holding Force 91daN.

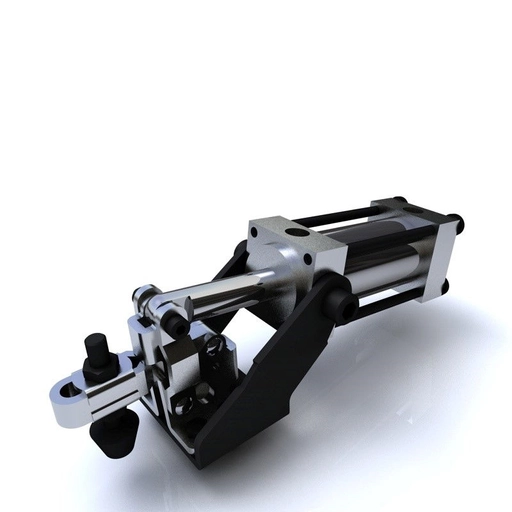

GH-12050-UA Pneumatically Operated Toggle Clamp with Adjustable Arm Size 95daN

Holding Force: 91daN
Arm Opens: 95°
Spindle Supplied: FC-064410
Flanged Washers Supplied: FW-142
Port Size: 1/8" NPT

What's In The Bag
GH-12050-UA Toggle Clamp
FC-064410 Spindle With Nuts
FW-142 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel

Quick Links

13 in stock

26-50mm
Adjustable
Flat
51-100mm
0-100Kg
151-200mm
21-30mm
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£185.40  ea. Excl VAT £222.48  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
10 + £161.30 13%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm Length26-50mm
Arm TypeAdjustable
Base TypeFlat
Height51-100mm
Holding Force0-100Kg
Total Length151-200mm
Underarm Height21-30mm

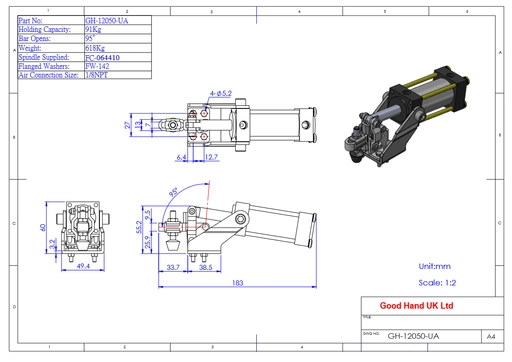

Download STP
GH-12050-UA
