Item Code: GH-12130-A

Pneumatic Toggle Clamp. Overall Length243mm. Overall Height 74.8mm. Holding Force 227daN.

Item Code: GH-12130-A

Pneumatic Toggle Clamp. Overall Length243mm. Overall Height 74.8mm. Holding Force 227daN.

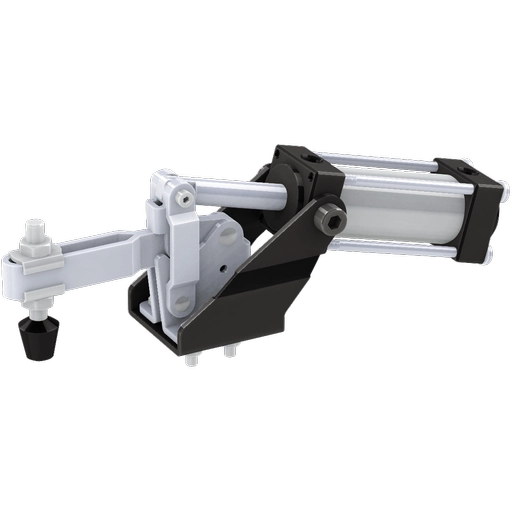

GH-12130-A Pneumatically Operated Vertical Toggle Clamp with Slotted Arm Size 227daN

Holding Force: 227daN
Arm Opens: 92°
Weight: 0.86Kg
Spindle Supplied: FC-086312
Flanged Washers Supplied: FW-516
Optional Magnetic Sensors: MT-22
Port Size: 1/8"
For other dimensions see GH-12130

What's In The Bag
GH-12130-A Toggle Clamp
FC-086312 Spindle With Nuts
FW-516 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel

Quick Links

37 in stock

51-75mm
Adjustable
Flat
51-100mm
201-300Kg
201-250mm
31-40mm
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£188.89  ea. Excl VAT £226.67  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
10 + £164.33 13%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm Length51-75mm
Arm TypeAdjustable
Base TypeFlat
Height51-100mm
Holding Force201-300Kg
Total Length201-250mm
Underarm Height31-40mm
Download STP

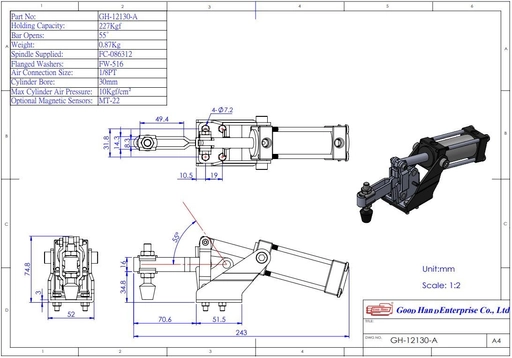

GH-12130-A Datasheet
