Item Code: GH-11500-A

Pneumatic Toggle Clamp. Overall Length 261mm. Overall Height 61.5mm. Holding Force 75daN.

Item Code: GH-11500-A

Pneumatic Toggle Clamp. Overall Length 261mm. Overall Height 61.5mm. Holding Force 75daN.

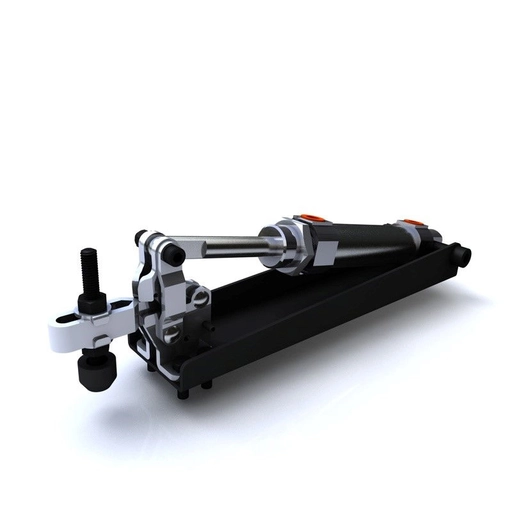

GH-11500-A Pneumatic Vertical Toggle Clamp with Slotted Arm Size 150daN

Holding Force: 150daN
Arm Opens: 85°
Spindle Supplied: SA-065010 + NC-06
Flanged Washers Supplied: FW-140
Port Size: 1/8" NPT

What's In The Bag
GH-11500-A Toggle Clamp
SA-065010 Spindle With Nuts
FW-140 Flanged Washers
NC-06 Neoprene Cap

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel

Quick Links

11 in stock

26-50mm
Adjustable
Flat
51-100mm
101-200kg
251+mm
21-30mm
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£188.18  ea. Excl VAT £225.82  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
10 + £163.72 13%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm Length26-50mm
Arm TypeAdjustable
Base TypeFlat
Height51-100mm
Holding Force101-200kg
Total Length251+mm
Underarm Height21-30mm
Download STP

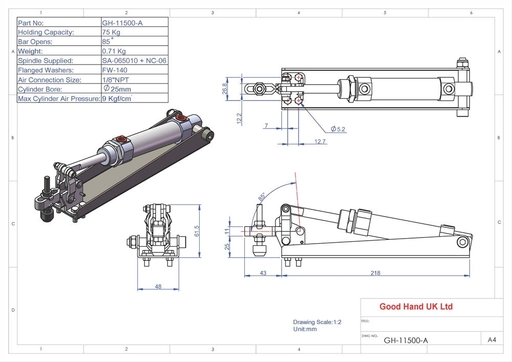

GH-11500-A Datasheet
