Item Code: GH-12050-A

Pneumatic Toggle Clamp. Overall Length 184mm. Overall Height 60mm. Holding Force 91daN.

Item Code: GH-12050-A

Pneumatic Toggle Clamp. Overall Length 184mm. Overall Height 60mm. Holding Force 91daN.

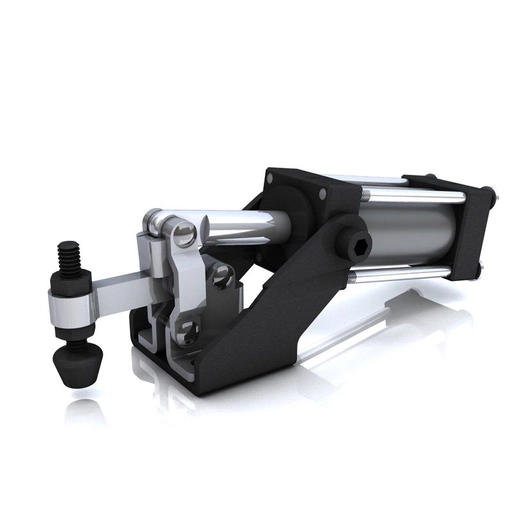

GH-12050-A Pneumatically Operated Vertical Toggle Clamp with Fixed Arm Size 95daN

Holding Force: 95daN
Arm Opens: 105°
Weight: 0.60Kg
Spindle Supplied: FC-064410
Flanged Washers Supplied: FW-141
Optional Magnetic Sensors: MT-22
Port Size: 1/8"
For other dimensions see GH-12050

What's In The Bag
GH-12050-A Toggle Clamp
FC-064410 Spindle With Nuts
FW-141 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel

Quick Links

13 in stock

26-50mm
Fixed
Flat
51-100mm
0-100Kg
151-200mm
21-30mm
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£179.49  ea. Excl VAT £215.39  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
10 + £156.16 13%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm Length26-50mm
Arm TypeFixed
Base TypeFlat
Height51-100mm
Holding Force0-100Kg
Total Length151-200mm
Underarm Height21-30mm
Download STP

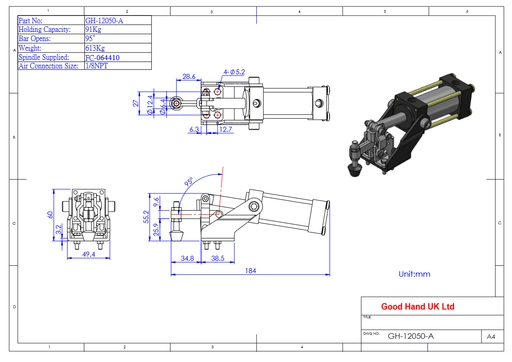

GH-12050-A Datasheet
