Item Code: GH-20820-A

Pneumatic Toggle Clamp. Overall Length 168.8mm. Overall Height 200mm. Holding Force 100daN

Item Code: GH-20820-A

Pneumatic Toggle Clamp. Overall Length 168.8mm. Overall Height 200mm. Holding Force 100daN

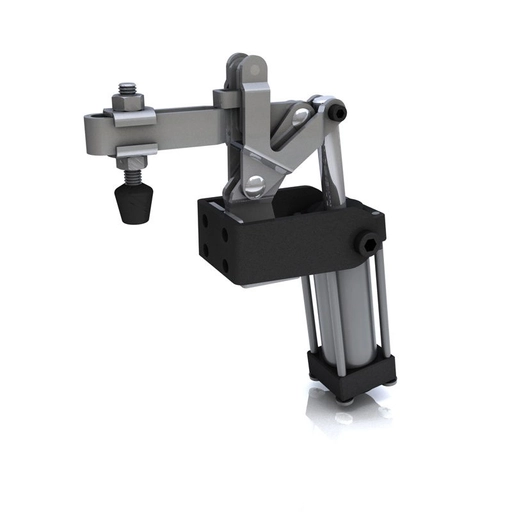

GH-20820-A Pneumatic Side Mounting Toggle Clamp Size 100daN

Holding Force: 100daN
Arm Opens: 90°
Weight: 4.40Kg
Spindle Supplied: FC-086312
Flanged Washers Supplied: FW-516
Optional Magnetic Sensors: MT-22
Port Size: 1/8"
For other dimensions see GH-20820

What's In The Bag
GH-20820-A Toggle Clamp
FC-086312 Neoprene Tipped Spindle With Nuts

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel

Quick Links

16 in stock

Side Mounted
0-100Kg
151-200mm
151-200mm
51+mm
51-75mm
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£208.51  ea. Excl VAT £250.21  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
10 + £181.40 13%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Base TypeSide Mounted
Holding Force0-100Kg
Height151-200mm
Total Length151-200mm
Underarm Height51+mm
Arm Length51-75mm

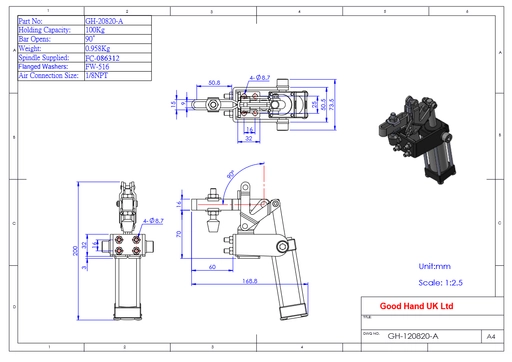

Download STP
