Item Code: GH-30600HL-A

Pneumatic Toggle Clamp. Stroke 25mm. Overall Length 325mm. Holding Force 600daN

Item Code: GH-30600HL-A

Pneumatic Toggle Clamp. Stroke 25mm. Overall Length 325mm. Holding Force 600daN

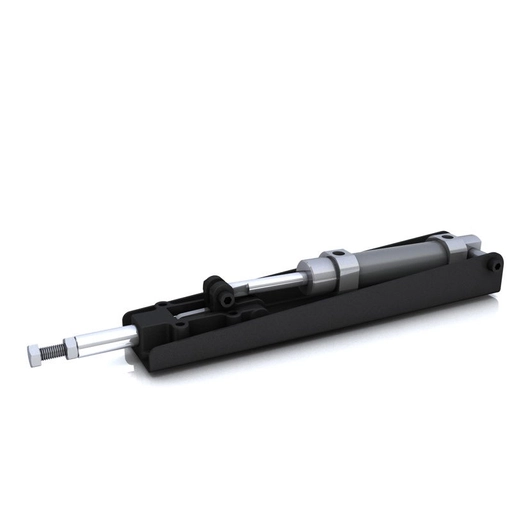

GH-30600HL-A Pneumatic Toggle Clamp with Plunger Stroke 25mm Size 600daN

Holding Force: 600daN
Plunger Stroke: 25mm
Weight: 1.45Kg
Spindle Supplied: SA-086512
Optional Magnetic Sensors: MT-22
Port Size: 1/8"

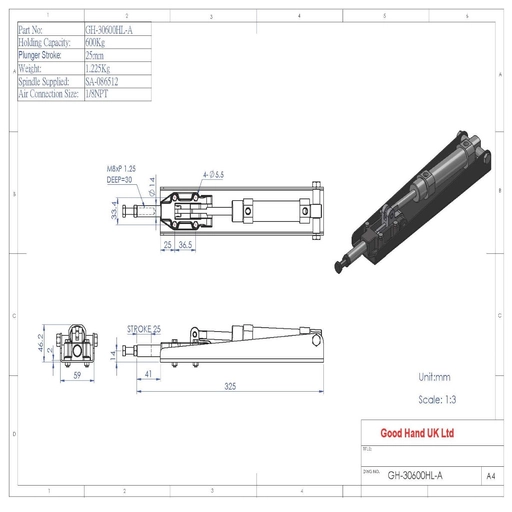

For other dimensions see GH-30600M

What's In The Bag
GH-30600HL-A Toggle Clamp
SA-086512 Spindle With Nuts

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel

Quick Links

8 in stock

401+kg
0-50mm
251+mm
0-20mm
26-50mm
41-60mm
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£195.12  ea. Excl VAT £234.14  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
10 + £169.75 13%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Holding Force401+kg
Height0-50mm
Total Length251+mm
Underarm Height0-20mm
Arm Length26-50mm
Plunger Stroke41-60mm
Download STP
