Item Code: GH-36003M-A

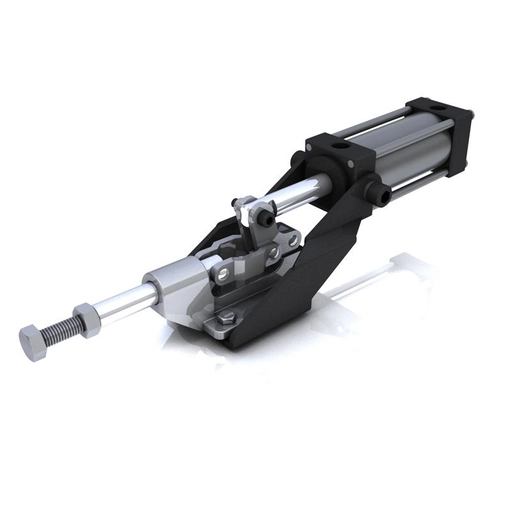

Pneumatic Toggle Clamp. Stroke 18.3mm. Overall Length 248.2mm. Holding Force 272daN

Item Code: GH-36003M-A

Pneumatic Toggle Clamp. Stroke 18.3mm. Overall Length 248.2mm. Holding Force 272daN

GH-36003M-A Pneumatic Toggle Clamp with Plunger Stroke 19mm Size 272daN

Holding Force: 275daN
Plunger Stroke: 19.7mm
Weight: 0.94Kg
Spindle Supplied: SA-085012
Optional Magnetic Sensors: MT-22
Port Size: 1/8"

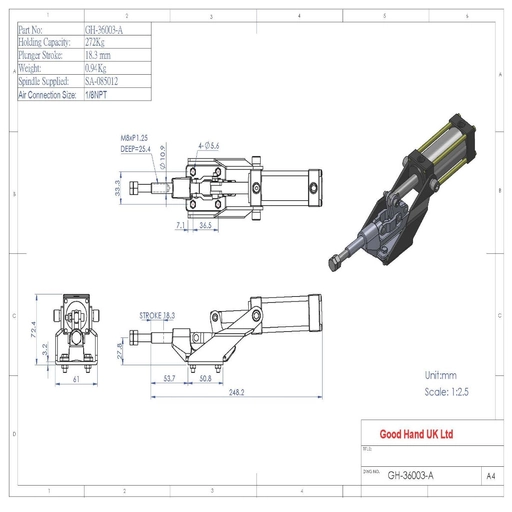

For other dimensions see GH-36003M

What's In The Bag
GH-36003M-A Toggle Clamp
SA-085012 Spindle With Nuts

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel

Quick Links

9 in stock

201-300Kg
51-100mm
201-250mm
21-30mm
51-75mm
0-20mm
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£199.18  ea. Excl VAT £239.02  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
10 + £173.29 13%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Holding Force201-300Kg
Height51-100mm
Total Length201-250mm
Underarm Height21-30mm
Arm Length51-75mm
Plunger Stroke0-20mm
Download STP
