Item Code: GH-51.1611681

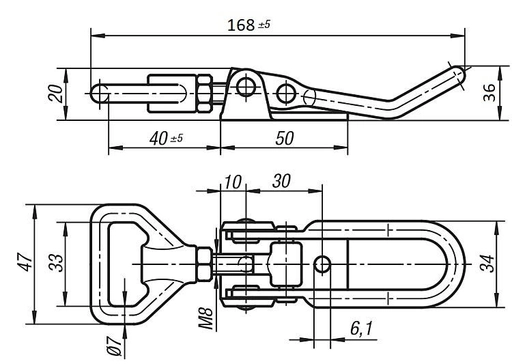

Medium Duty Adjustable Hook Latch In Steel Length 168mm

Item Code: GH-51.1611681

Medium Duty Adjustable Hook Latch In Steel Length 168mm

Latch Plate sold separately. Potential part numbers GH-51.9143381 or GH-51.9254781

Kipp Part Number K0051.1611681

Material:
Steel

Version:
Galvanized and blue chromed.

Note:
Adjustable latches are safe locking systems for industrial applications. By exceeding the dead centre they resist vibration.

After the bail engages with the catch plate, by pushing the lever down the parts to be locked can be drawn together by up to 15 mm.
To compensate for tolerances or to create enough tension the bail length can be adjusted using the M8 spindle.

The latches can be screwed down or riveted. We recommend using countersunk screws for fastening the components.

Order the required catch plate version separately.

The retaining force F1 applies to the latch, not the catch plate.

Quick Links

13 in stock

163-173mm
Steel
Latch Only
Qty
Qty

£15.38  ea. Excl VAT £18.46  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
10 - 24 £14.15 8%
25 - 49 £13.38 13%
50 + £12.30 20%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty

Quick Links



Main materialsteel
ItemLatch
Version 1with swing bail, adjustable
H36
L168
Version 2fastening holes visible
Surface finish bodygalvanised
FormA
Product typestandard
Part NumberGH-51.1611681
Retaining force F1 N6500
Length163-173mm
MaterialSteel
VersionLatch Only
DWG Download
GH-51.1611681 Datasheet
IGS Download
STP Download
