Long Catch Plate In Steel

Item Code: GH-51.9254781

Long Catch Plate In Steel

Item Code: GH-51.9254781

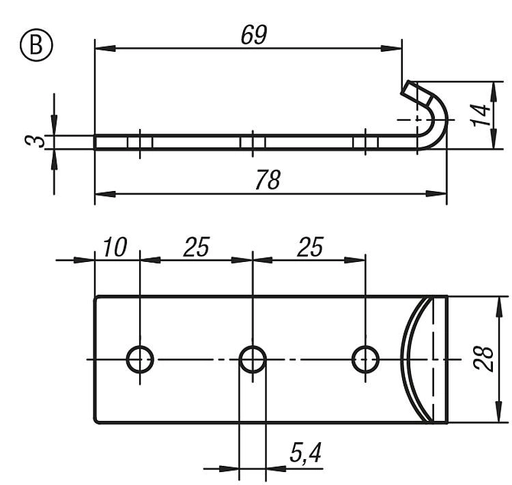

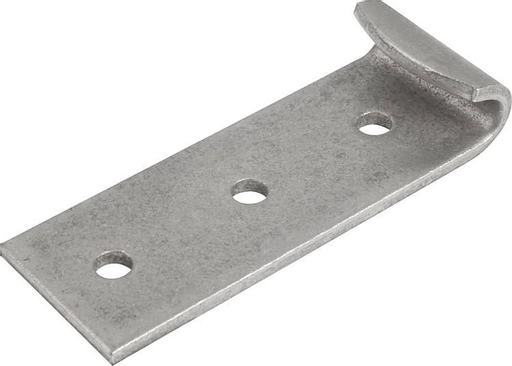

Long Catch Plate In Steel

Kipp Part Number K0051.9254781

Material:
Steel or stainless steel 1.4301.

Version:
Galvanized and blue chromed.
Stainless steel bright.

Note:
Adjustable latches are safe locking systems for industrial applications. By exceeding the dead centre they resist vibration.

After the bail engages with the catch plate, by pushing the lever down the parts to be locked can be drawn together by up to 15 mm.
To compensate for tolerances or to create enough tension the bail length can be adjusted using the M8 spindle.

The latches can be screwed down or riveted. We recommend using countersunk screws for fastening the components.

Order the required catch plate version separately.

The retaining force F1 applies to the latch, not the catch plate.
