Item Code: GH-50.1421121

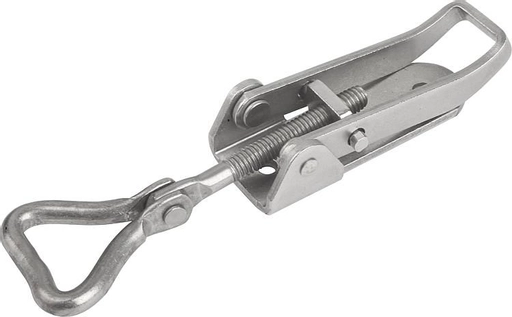

Light Duty Adjustable Hook In Steel Length 112mm

Item Code: GH-50.1421121

Light Duty Adjustable Hook In Steel Length 112mm

Order catch plates separately. Part No. GH-50.9135211

Kipp Part Number K0050.1421121

Material:
Steel

Version:
Galvanized and blue chromed.

Note:
Adjustable hook latches are safe locking systems for industrial applications. By exceeding the dead centre they resist vibration. To compensate for tolerances the latch has a swing mounted bail.

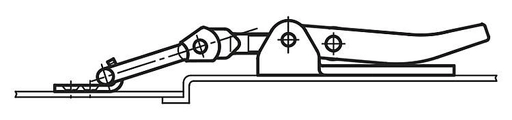

After the bail is engaged with the catch plate, by pushing the lever down the parts to be locked can be drawn together by up to 15 mm. To compensate for tolerances or to create enough tension the bail length can be adjusted by the M6 threaded spindle.

The hook latches can be screwed down or riveted. We recommend using countersunk screws for fastening the components.

The retaining force F1 applies to the latch, not the catch plate.

Quick Links

33 in stock

102-122mm
Steel
Latch Only

£7.18  ea. Excl VAT £8.62  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
10 - 24 £6.61 8%
25 - 49 £6.25 13%
50 + £5.74 20%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Main materialsteel
ItemLatch
Version 1with hook clamp, movable and adjustable
Version 2fastening holes visible
Surface finish bodygalvanised

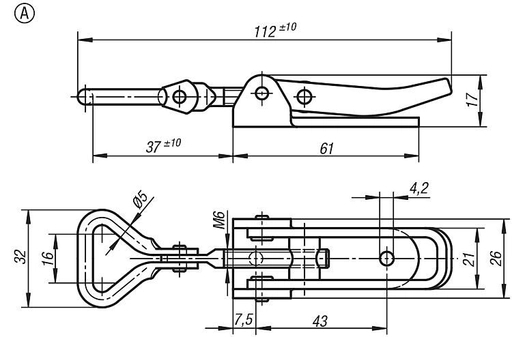

FormA
Product typestandard
Part NumberGH-50.1421121
Retaining force F1 N1000
Length102-122mm
MaterialSteel
VersionLatch Only
DWG Download
GH-50.1421121 Datasheet
IGS Download
STP Download
