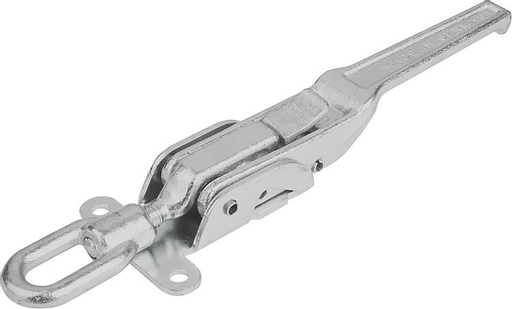

Heavy Duty Toggle Latch In Steel Length 237mm

Item Code: GH-52.1852371

Heavy Duty Toggle Latch In Steel Length 237mm

Item Code: GH-52.1852371

Heavy Duty Toggle Latch In Steel Length 237mm

Please order latch separately. Possible Part No. GH-52.91851201 or GH-52.92000601

Kipp Part Number K0052.1852371

Length : 237mm
Material:
Steel.

Version:
Galvanized and blue chromed.
Catch plate Form B (weldable) bright.

Note:
Heavy, forged latches for high tensile loads. Primarily used on utility vehicles, agricultural and construction machinery. A ratchet prevents unintentional opening when closed.

To compensate for tolerances or to create enough tension the bail can be adjusted using the spindle D1.

The retaining force F1 applies to the latch, not the catch plate.

Quick Links

4 in stock

Length: 237mm

Material: Steel

Version: Latch Only

Catch Plate In Steel Weldable - £9.33
Catch Plate In Steel Weldable

Qty

Catch Plate In Steel With Fixing Holes - £11.34
Catch Plate In Steel With Fixing Holes

Qty

£104.58 ea. Excl VAT £125.50 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
10 - 24	£96.21	8%
25 - 49	£90.98	13%
50 +	£83.66	20%

Optional Extras

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Catch Plate In Steel Weldable - £9.33
Catch Plate In Steel Weldable

Qty

Catch Plate In Steel With Fixing Holes - £11.34
Catch Plate In Steel With Fixing Holes

Qty

Quick Links

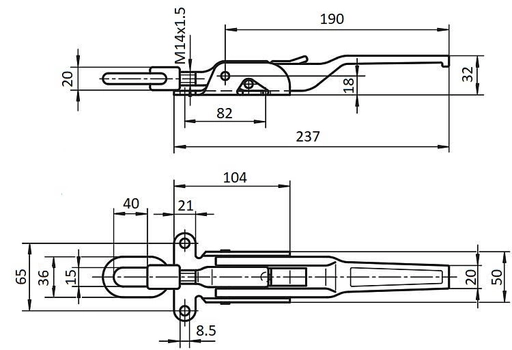

Product Dimensions

Main material	steel
Item	Latch
Version 1	with swing bail, adjustable
A	65
B	50
D	8,5
H	32
H1	20
L	237
L1	104
L2	21
L3	40
Version 2	fastening holes visible
B1	20
D1	M14x1,5
Surface finish body	galvanised and passivated
A1	82
B2	36
H2	18
Form	A
B3	15
Part Number	GH-52.1852371
Retaining force F1 N	30500
