Heavy Duty Toggle Latch In Steel Length 204mm

Item Code: GH-52.1702041

Heavy Duty Toggle Latch In Steel Length 204mm

Item Code: GH-52.1702041

Heavy Duty Toggle Latch In Steel Length 204mm

Please order latch separately. Possible Part No. GH-52.91851201 or GH-52.92000601

Kipp Part Number K0052.1702041

Length : 204mm
Material:
Steel.

Version:
Galvanized and blue chromed.
Catch plate Form B (weldable) bright.

Note:
Heavy, forged latches for high tensile loads. Primarily used on utility vehicles, agricultural and construction machinery. A ratchet prevents unintentional opening when closed.

To compensate for tolerances or to create enough tension the bail can be adjusted using the spindle D1.

The retaining force F1 applies to the latch, not the catch plate.

Quick Links

50+ in stock

Length: 204mm

Material: Steel

Version: Latch Only

Catch Plate In Steel Weldable - £9.33
Catch Plate In Steel Weldable

Qty

Catch Plate In Steel With Fixing Holes - £11.34
Catch Plate In Steel With Fixing Holes

Qty

£77.29 ea. Excl VAT £92.75 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
10 - 24	£71.11	8%
25 - 49	£67.24	13%
50 +	£61.83	20%

Optional Extras

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Catch Plate In Steel Weldable - £9.33
Catch Plate In Steel Weldable

Qty

Catch Plate In Steel With Fixing Holes - £11.34
Catch Plate In Steel With Fixing Holes

Qty

Quick Links

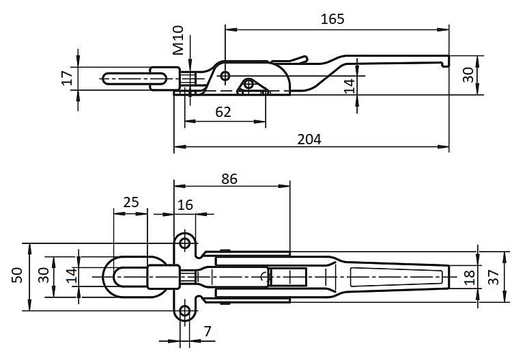

Product Dimensions

Main material	steel
Item	Latch
Version 1	with swing bail, adjustable
A	49
B	37
D	7
H	30
H1	17
L	204
L1	86
L2	16
L3	25
Version 2	fastening holes visible
B1	18
D1	M10
Surface finish body	galvanised and passivated
A1	62
B2	30
H2	14
Form	A
B3	14
Part Number	GH-52.1702041
Retaining force F1 N	20000
