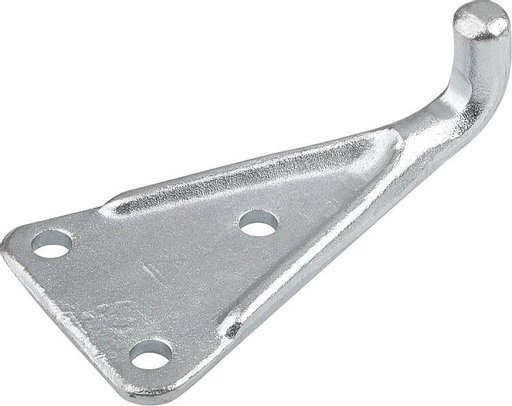

Catch Plate In Steel With Fixing Holes

Item Code: GH-52.91851201

Catch Plate In Steel With Fixing Holes

Item Code: GH-52.91851201

Catch Plate In Steel With Fixing Holes

Kipp Part Number K0052.91851201

Material:
Steel.

Version:
Galvanized and blue chromed.
Catch plate Form B (weldable) bright.

Note:
Heavy, forged latches for high tensile loads. Primarily used on utility vehicles, agricultural and construction machinery. A ratchet prevents unintentional opening when closed.

To compensate for tolerances or to create enough tension the bail can be adjusted using the spindle D1.

Order required catch plate version separately.

The retaining force F1 applies to the latch, not the catch plate.

Quick Links

16 in stock

Material: Steel

Version: Catch Plate Only

£11.34 ea. Excl VAT £13.61 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
10 - 24	£10.43	8%
25 - 49	£9.87	13%
50 +	£9.07	20%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

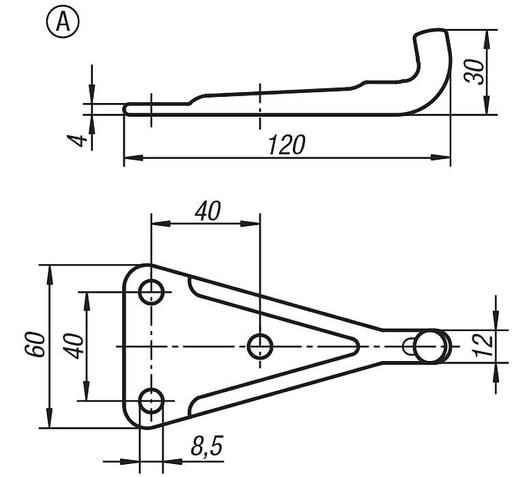

Product Dimensions

Main material	steel
Item	Catch Plate
Version 1	for latch
L	120
Version 2	screw on
Surface finish body	galvanised and passivated
Form	A
Product type	heavy-duty version
Part Number	GH-52.91851201
for Art. No.	K0052
