Catch Plate In Steel For GH-50.1421121

Item Code: GH-50.9135211

Catch Plate In Steel For GH-50.1421121

Item Code: GH-50.9135211

Catch Plate In Steel For GH-50.1421121

Kipp Part Number K0050.9135211

Material:
Steel or stainless steel 1.4301.

Version:
Galvanized and blue chromed.
Stainless steel bright.

Note:
Adjustable latches are safe locking systems for industrial applications. By exceeding the dead centre they resist vibration. To compensate for tolerances the latch has a swing mounted bail.

After the bail is engaged with the catch plate, by pushing the lever down the parts to be locked can be drawn together by up to 15 mm. To compensate for tolerances or to create enough tension the bail length can be adjusted by the M6 threaded spindle.

The latches can be screwed down or riveted. We recommend using countersunk screws for fastening the components.

Order catch plates separately.

The retaining force F1 applies to the latch, not the catch plate.

Quick Links

18 in stock

Material: Steel

Version: Catch Plate Only

£0.74 ea. Excl VAT £0.89 ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty	Price per item	Savings
10 - 24	£0.68	8%
25 - 49	£0.64	13%
50 +	£0.59	20%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify

modal placeholder

Quick Links

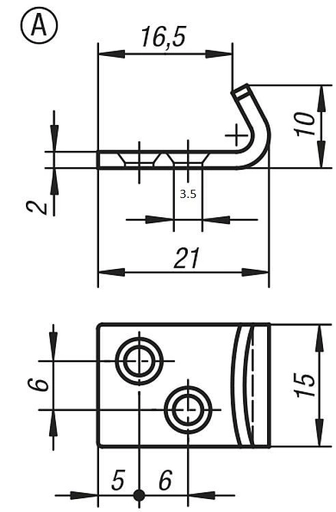

Product Dimensions

Main material	steel
Item	Catch Plate
Version 1	for latch
D	3,7
Version 2	with movable clamping hook
Surface finish body	galvanised
Form	A
Part Number	GH-50.9135211
for Art. No.	K0050

Specifications

Material	Steel
Version	Catch Plate Only

Catch Plate In Steel For GH-50.1421121

Catch Plate In Steel For GH-50.1421121
