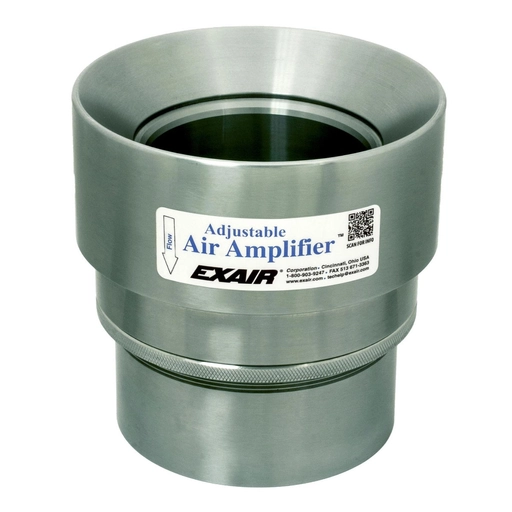

4" Adjustable Air Amplifier In Aluminium. 77mm Bore.

Item Code: 6044

4" Adjustable Air Amplifier In Aluminium. 77mm Bore.

Item Code: 6044

4" Adjustable Air Amplifier In Aluminium. 77mm Bore.

This Exair aluminium adjustable air amplifier with 77mm bore only require a compressed air connection to work.

Force and flow for the Adjustable Air Amplifier is changed by turning the exhaust end (with the knurled ring loose) to open or close the continuous air gap. When desired performance is obtained, the knurled ring can be tightened to lock the flow at that setting. Utilizing a basic principle of fluidics, the Coanda effect, Air Amplifiers become a simple, low cost way to circulate air, move smoke, fumes, and light materials. Available in aluminum or in stainless steel for food service, higher temperatures (400°F/204°C), and corrosive applications.

All items are manufactured with BSP threads or have a suitable adapter provided.

Air Consumption: 1416L/m
Amplification Ratio: 24:1
Output Air Volume: 33980L/min
Sound Level: 84dBA
All measurements based on 5.5Bar

Kit Includes
1x 6044 Aluminium Adjustable Air Amplifier

Quick Links

1 in stock

Bore Size: 77mm

Material: Aluminium

Style: Air Amplifier Only
