3/4" Adjustable Air Amplifier Kit In Aluminium. 11mm Bore.

Item Code: 6240

3/4" Adjustable Air Amplifier Kit In Aluminium. 11mm Bore.

Item Code: 6240

3/4" Adjustable Air Amplifier Kit In Aluminium. 11mm Bore.

This Exair aluminium adjustable air amplifier with 11mm bore only require a compressed air connection to work.

Force and flow for the Adjustable Air Amplifier is changed by turning the exhaust end (with the knurled ring loose) to open or close the continuous air gap. When desired performance is obtained, the knurled ring can be tightened to lock the flow at that setting. Utilizing a basic principle of fluidics, the Coanda effect, Air Amplifiers become a simple, low cost way to circulate air, move smoke, fumes, and light materials. Available in aluminum or in stainless steel for food service, higher temperatures (400°F/204°C), and corrosive applications.

All items are manufactured with BSP threads or have a suitable adapter provided.

Air Consumption: 252L/m
Amplification Ratio: 10
Output Air Volume: 2430L/min
Sound Level: 78dBA
All measurements based on 5.5Bar

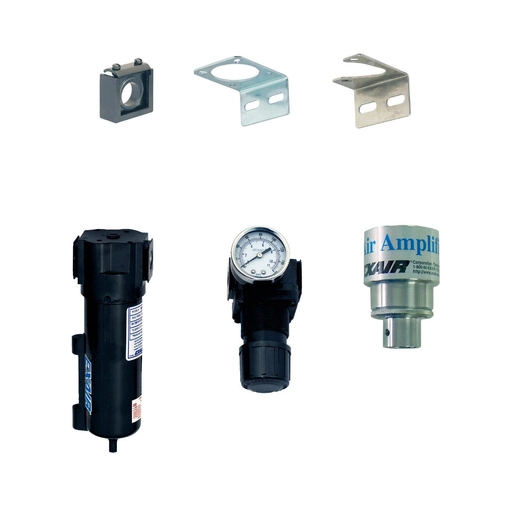

Kit Includes
1x 6040 Aluminum Adjustable Air Amplifier Only
1x 9001 Automatic Drain Filter Separator, 3/8 NPT
1x 9008 Pressure Regulator with Gauge, 1/4 NPT
1x 9046 Mounting and Coupling Kit for model 9001 / 9008 and model 9032 / 9033

Quick Links

Dispatch by 16/06/25

Material: Aluminium

Style: Air Amplifier With Filter

Bore Size: 11mm

£378.57 ea. Excl VAT £454.28 ea. Inc VAT
