Adjustable Air Amplifier. Stainless Steel. 42mm Bore. Includes Filter/Regulator

Item Code: 6232

Adjustable Air Amplifier. Stainless Steel. 42mm Bore. Includes Filter/Regulator

Item Code: 6232

Adjustable Air Amplifier. Stainless Steel. 42mm Bore. Includes Filter/Regulator

Adjustable air amplifiers only require a compressed air connection to work.

Force and flow for the Adjustable Air Amplifier is changed by turning the exhaust end (with the knurled ring loose) to open or close the continuous air gap. When desired performance is obtained, the knurled ring can be tightened to lock the flow at that setting. Utilizing a basic principle of fluidics, the Coanda effect, Air Amplifiers become a simple, low cost way to circulate air, move smoke, fumes, and light materials.

All items are manufactured with BSP threads or have a suitable adapter provided.

Air Consumption: 608L/m
Amplification Ratio: 20:1
Output Air Volume: 12176L/min
Sound Level: 82dBA
All measurements based on 5.5Bar

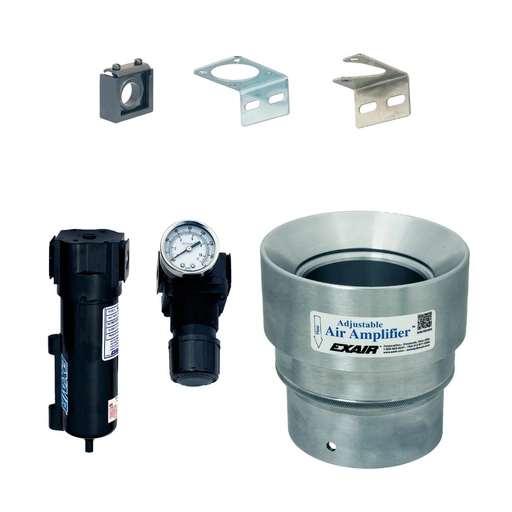

Kit Includes
6032 - Stainless Steel Adjustable Air Amplifier Only
9001 - Automatic Drain Filter Separator, 3/8 NPT
9008 - Pressure Regulator with Gauge, 1/4 NPT
9046 - Mounting and Coupling Kit for model 9001 / 9008 and model 9032 / 9033

Quick Links

Dispatch by 07/09/25

Bore Size: 42mm

Material: Stainless Steel

Style: Air Amplifier With Filter

£782.45 ea. Excl VAT £938.94 ea. Inc VAT
