1-1/4" Adjustable Air Amplifier Kit In Stainless Steel. 21mm Bore.

Item Code: 6231

1-1/4" Adjustable Air Amplifier Kit In Stainless Steel. 21mm Bore.

Item Code: 6231

1-1/4" Adjustable Air Amplifier Kit In Stainless Steel. 21mm Bore.

This Exair stainless steel adjustable air amplifier with 21mm bore only require a compressed air connection to work.

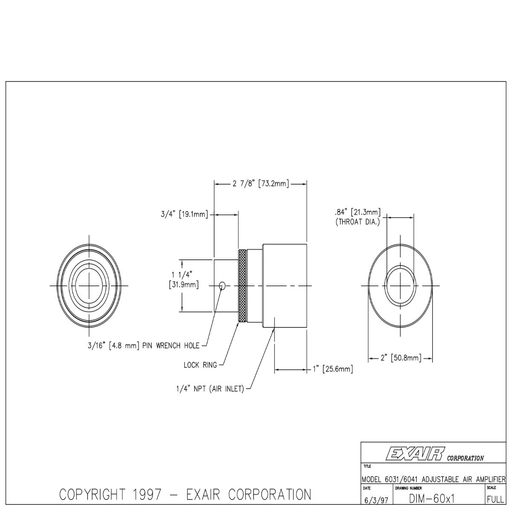

Force and flow for the Adjustable Air Amplifier is changed by turning the exhaust end (with the knurled ring loose) to open or close the continuous air gap. When desired performance is obtained, the knurled ring can be tightened to lock the flow at that setting. Utilizing a basic principle of fluidics, the Coanda effect, Air Amplifiers become a simple, low cost way to circulate air, move smoke, fumes, and light materials. Available in aluminum or in stainless steel for food service, higher temperatures (400°F/204°C), and corrosive applications.

All items are manufactured with BSP threads or have a suitable adapter provided.

Air Consumption: 365L/m
Amplification Ratio 16:1
Output Air Volume 5833L/min
Sound Level 81dBA
All measurements based on 5.5Bar

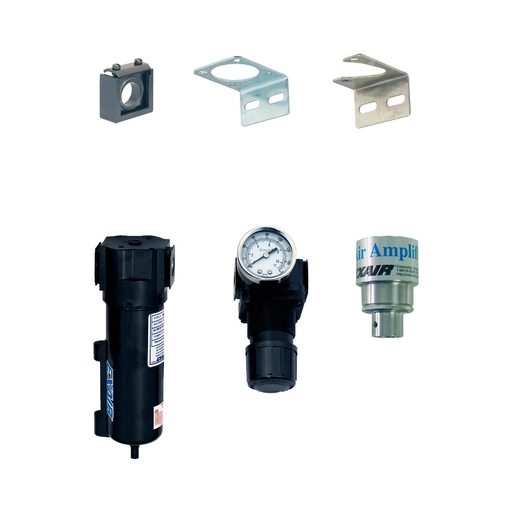

Kit Includes:
1x 6031 Stainless Steel Adjustable Air Amplifier Only
1x 9001 Automatic Drain Filter Separator, 3/8 NPT
1x 9008 Pressure Regulator with Gauge, 1/4 NPT
1x 9046 Mounting and Coupling Kit for model 9001 / 9008 and model 9032 / 9033

Quick Links

Dispatch by 07/07/25

Bore Size: 21mm

Material: Stainless Steel

Style: Air Amplifier With Filter

£759.04 ea. Excl VAT £910.85 ea. Inc VAT
