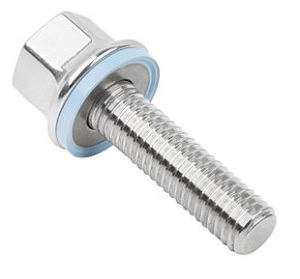

316 Stainless Steel Hex Head Screw With Fluoroprene XP 45 (Blue) Seal

316 Stainless Steel Hex Head Screw With Fluoroprene XP 45 (Blue) Seal

List view Grid view

Product description:
Set: hexagon head screw with collar K1492 + Hygienic USIT® seal and shim washer K1491.

Only the combination of a hexagon head screw with collar and the Hygienic USIT® seal and shim washer assures a cavity-free seal.

The hexagon head screw with collar for Hygienic USIT® seal and shim washers is ideal for fastening in sterile areas and also conforms to EHEDG regulations, which is confirmed with the relevant certificate.

Material:
Hexagon head screw: stainless steel 1.4404.
Washer: stainless steel 1.4404.

Seal ring:
75 Fluoroprene® XP 45 (blue).

Version:
Hexagon head screw: polished

Note:
The EHEDG certificate is only valid when a combination of hexagon head screw with collar K1492 and specially matched Hygienic USIT® seal and shim washer K1491 is used.

Attention:
The function of the Hygienic USIT® screw connection system has been tested in combination with stainless steel materials and standard cleaning materials.
The user must check that it is suitable for the application in question.

Suggested Accessories:
Cap nut with collar K1493.
Sockets with plastic inserts K1361.
Ring/open-end spanner with protective caps K1362.

Hygienic Hex Head Bolt With Hygienic Seal & Shim Washer. Fluoroprene XP 45 Blue. M8x60mm. 316 Stainless Steel.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Line drawing placeholder

Move drawing here

	B	Component colour	D	D1	D2	D3	Form	K	L	Material	R	S	SW	Price (Exc. Tax)	Stock
Filters
K1595.044X10 View product	--	Blue	M4	10.8	9.7	4.1	A	6.9	10	Fluoroprene XP 45	0.45	1	7	£10.32	0
K1595.044X12 View product	--	Blue	M4	10.8	9.7	4.1	A	6.9	12	Fluoroprene XP 45	0.45	1	7	£10.36	0
K1595.044X16 View product	--	Blue	M4	10.8	9.7	4.1	A	6.9	16	Fluoroprene XP 45	0.45	1	7	£10.49	0
K1595.044X20 View product	--	Blue	M4	10.8	9.7	4.1	A	6.9	20	Fluoroprene XP 45	0.45	1	7	£10.65	0
K1595.044X25 View product	14	Blue	M4	10.8	9.7	4.1	B	6.9	25	Fluoroprene XP 45	0.45	1	7	£10.92	0
K1595.044X30 View product	14	Blue	M4	10.8	9.7	4.1	B	6.9	30	Fluoroprene XP 45	0.45	1	7	£11.09	0
K1595.044X35 View product	14	Blue	M4	10.8	9.7	4.1	B	6.9	35	Fluoroprene XP 45	0.45	1	7	£11.31	0
K1595.044X40 View product	14	Blue	M4	10.8	9.7	4.1	B	6.9	40	Fluoroprene XP 45	0.45	1	7	£11.57	0
K1595.044X8 View product	--	Blue	M4	10.8	9.7	4.1	A	6.9	8	Fluoroprene XP 45	0.45	1	7	£10.26	0
K1595.054X10 View product	--	Blue	M5	11.8	10.7	5.1	A	8.5	10	Fluoroprene XP 45	0.5	1	8	£9.75	0
K1595.054X12 View product	--	Blue	M5	11.8	10.7	5.1	A	8.5	12	Fluoroprene XP 45	0.5	1	8	£9.78	0
K1595.054X16 View product	--	Blue	M5	11.8	10.7	5.1	A	8.5	16	Fluoroprene XP 45	0.5	1	8	£9.83	0
K1595.054X20 View product	--	Blue	M5	11.8	10.7	5.1	A	8.5	20	Fluoroprene XP 45	0.5	1	8	£10.09	0
K1595.054X25 View product	16	Blue	M5	11.8	10.7	5.1	B	8.5	25	Fluoroprene XP 45	0.5	1	8	£10.22	0
K1595.054X30 View product	16	Blue	M5	11.8	10.7	5.1	B	8.5	30	Fluoroprene XP 45	0.5	1	8	£10.61	0
K1595.054X35 View product	16	Blue	M5	11.8	10.7	5.1	B	8.5	35	Fluoroprene XP 45	0.5	1	8	£11.00	0
K1595.054X40 View product	16	Blue	M5	11.8	10.7	5.1	B	8.5	40	Fluoroprene XP 45	0.5	1	8	£11.38	0
K1595.054X45 View product	16	Blue	M5	11.8	10.7	5.1	B	8.5	45	Fluoroprene XP 45	0.5	1	8	£12.14	0
K1595.054X50 View product	16	Blue	M5	11.8	10.7	5.1	B	8.5	50	Fluoroprene XP 45	0.5	1	8	£12.87	0
K1595.064X12 View product	--	Blue	M6	14	13.1	6.1	A	9.2	12	Fluoroprene XP 45	0.55	1	10	£10.85	0
K1595.064X16 View product	--	Blue	M6	14	13.1	6.1	A	9.2	16	Fluoroprene XP 45	0.55	1	10	£10.90	0
K1595.064X20 View product	--	Blue	M6	14	13.1	6.1	A	9.2	20	Fluoroprene XP 45	0.55	1	10	£11.02	0
K1595.064X25 View product	--	Blue	M6	14	13.1	6.1	A	9.2	25	Fluoroprene XP 45	0.55	1	10	£11.30	0
K1595.064X30 View product	18	Blue	M6	14	13.1	6.1	B	9.2	30	Fluoroprene XP 45	0.55	1	10	£11.63	0
K1595.064X35 View product	18	Blue	M6	14	13.1	6.1	B	9.2	35	Fluoroprene XP 45	0.55	1	10	£12.06	0
K1595.064X40 View product	18	Blue	M6	14	13.1	6.1	B	9.2	40	Fluoroprene XP 45	0.55	1	10	£12.43	0
K1595.064X45 View product	18	Blue	M6	14	13.1	6.1	B	9.2	45	Fluoroprene XP 45	0.55	1	10	£12.86	0
K1595.064X50 View product	18	Blue	M6	14	13.1	6.1	B	9.2	50	Fluoroprene XP 45	0.55	1	10	£13.38	0
K1595.064X60 View product	18	Blue	M6	14	13.1	6.1	B	9.2	60	Fluoroprene XP 45	0.55	1	10	£15.69	0
K1595.084X16 View product	--	Blue	M8	18	16.9	8.1	A	11.7	16	Fluoroprene XP 45	0.6	1	13	£15.16	0
K1595.084X20 View product	--	Blue	M8	18	16.9	8.1	A	11.7	20	Fluoroprene XP 45	0.6	1	13	£15.26	0
K1595.084X25 View product	--	Blue	M8	18	16.9	8.1	A	11.7	25	Fluoroprene XP 45	0.6	1	13	£15.55	0
K1595.084X30 View product	--	Blue	M8	18	16.9	8.1	A	11.7	30	Fluoroprene XP 45	0.6	1	13	£15.78	0
K1595.084X35 View product	--	Blue	M8	18	16.9	8.1	A	11.7	35	Fluoroprene XP 45	0.6	1	13	£16.26	0
K1595.084X40 View product	22	Blue	M8	18	16.9	8.1	B	11.7	40	Fluoroprene XP 45	0.6	1	13	£16.70	0
K1595.084X45 View product	22	Blue	M8	18	16.9	8.1	B	11.7	45	Fluoroprene XP 45	0.6	1	13	£17.43	0
K1595.084X50 View product	22	Blue	M8	18	16.9	8.1	B	11.7	50	Fluoroprene XP 45	0.6	1	13	£17.89	0
K1595.084X60 View product	22	Blue	M8	18	16.9	8.1	B	11.7	60	Fluoroprene XP 45	0.6	1	13	£18.93	0
K1595.084X70 View product	22	Blue	M8	18	16.9	8.1	B	11.7	70	Fluoroprene XP 45	0.6	1	13	£19.69	0
K1595.084X80 View product	22	Blue	M8	18	16.9	8.1	B	11.7	80	Fluoroprene XP 45	0.6	1	13	£22.14	0
K1595.104X20 View product	--	Blue	M10	22	21.2	10.1	A	14	20	Fluoroprene XP 45	0.75	1.5	16	£18.41	0
K1595.104X25 View product	--	Blue	M10	22	21.2	10.1	A	14	25	Fluoroprene XP 45	0.75	1.5	16	£18.51	0
K1595.104X30 View product	--	Blue	M10	22	21.2	10.1	A	14	30	Fluoroprene XP 45	0.75	1.5	16	£18.84	0
K1595.104X35 View product	--	Blue	M10	22	21.2	10.1	A	14	35	Fluoroprene XP 45	0.75	1.5	16	£19.40	0
K1595.104X40 View product	--	Blue	M10	22	21.2	10.1	A	14	40	Fluoroprene XP 45	0.75	1.5	16	£20.24	0
K1595.104X45 View product	26	Blue	M10	22	21.2	10.1	B	14	45	Fluoroprene XP 45	0.75	1.5	16	£20.77	0
K1595.104X50 View product	26	Blue	M10	22	21.2	10.1	B	14	50	Fluoroprene XP 45	0.75	1.5	16	£21.42	0
K1595.104X60 View product	26	Blue	M10	22	21.2	10.1	B	14	60	Fluoroprene XP 45	0.75	1.5	16	£22.32	0
