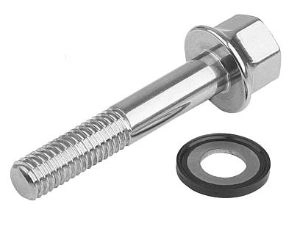

316 Stainless Steel Hex Head Screw With 70 EPDM 291 (Black) Seal

316 Stainless Steel Hex Head Screw With 70 EPDM 291 (Black) Seal

List view Grid view

Product description:
Set: hexagon head screw with collar K1492 + Hygienic USIT® seal and shim washer K1491.

Only the combination of a hexagon head screw with collar and the Hygienic USIT® seal and shim washer assures a cavity-free seal.

The hexagon head screw with collar for Hygienic USIT® seal and shim washers is ideal for fastening in sterile areas and also conforms to EHEDG regulations, which is confirmed with the relevant certificate.

Material:
Hexagon head screw: stainless steel 1.4404.
Washer: stainless steel 1.4404.

Seal ring:
70 EPDM 291 (black).

Version:
Hexagon head screw: polished

Note:
The EHEDG certificate is only valid when a combination of hexagon head screw with collar K1492 and specially matched Hygienic USIT® seal and shim washer K1491 is used.

Attention:
The function of the Hygienic USIT® screw connection system has been tested in combination with stainless steel materials and standard cleaning materials.
The user must check that it is suitable for the application in question.

Suggested Accessories:
Cap nut with collar K1493.
Sockets with plastic inserts K1361.
Ring/open-end spanner with protective caps K1362.

Hygienic Hex Head Bolt With Hygienic Seal & Shim Washer. 70 EPDM 291 Black. M12x45mm. 316 Stainless Steel.

Select your sizes

Choose Vertical Base Type

Choose Horizontal Base Type

Choose Stroke Length

Choose Type

Style

Item

Style

Clamp Type

Line drawing placeholder

Move drawing here

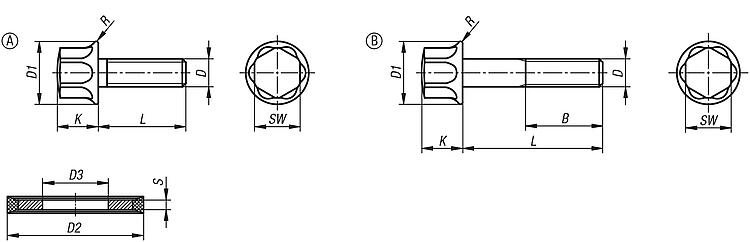

	B	Component colour	D	D1	D2	D3	Form	K	L	Material	R	S	SW	Price (Exc. Tax)	Stock
Filters
K1595.041X10 View product	--	Black	M4	10.8	9.7	4.1	A	6.9	10	75 EPDM 295	0.45	1	7	£7.01	0
K1595.041X12 View product	--	Black	M4	10.8	9.7	4.1	A	6.9	12	75 EPDM 295	0.45	1	7	£7.06	0
K1595.041X16 View product	--	Black	M4	10.8	9.7	4.1	A	6.9	16	75 EPDM 295	0.45	1	7	£7.18	0
K1595.041X20 View product	--	Black	M4	10.8	9.7	4.1	A	6.9	20	75 EPDM 295	0.45	1	7	£7.36	0
K1595.041X25 View product	14	Black	M4	10.8	9.7	4.1	B	6.9	25	75 EPDM 295	0.45	1	7	£7.63	0
K1595.041X30 View product	14	Black	M4	10.8	9.7	4.1	B	6.9	30	75 EPDM 295	0.45	1	7	£7.79	0
K1595.041X35 View product	14	Black	M4	10.8	9.7	4.1	B	6.9	35	75 EPDM 295	0.45	1	7	£8.01	0
K1595.041X40 View product	14	Black	M4	10.8	9.7	4.1	B	6.9	40	75 EPDM 295	0.45	1	7	£8.26	0
K1595.041X8 View product	--	Black	M4	10.8	9.7	4.1	A	6.9	8	75 EPDM 295	0.45	1	7	£6.96	0
K1595.051X10 View product	--	Black	M5	11.8	10.7	5.1	A	8.5	10	75 EPDM 295	0.5	1	8	£6.45	0
K1595.051X12 View product	--	Black	M5	11.8	10.7	5.1	A	8.5	12	75 EPDM 295	0.5	1	8	£6.49	0
K1595.051X16 View product	--	Black	M5	11.8	10.7	5.1	A	8.5	16	75 EPDM 295	0.5	1	8	£6.55	0
K1595.051X20 View product	--	Black	M5	11.8	10.7	5.1	A	8.5	20	75 EPDM 295	0.5	1	8	£6.80	0
K1595.051X25 View product	16	Black	M5	11.8	10.7	5.1	B	8.5	25	75 EPDM 295	0.5	1	8	£6.95	0
K1595.051X30 View product	16	Black	M5	11.8	10.7	5.1	B	8.5	30	75 EPDM 295	0.5	1	8	£7.33	0
K1595.051X35 View product	16	Black	M5	11.8	10.7	5.1	B	8.5	35	75 EPDM 295	0.5	1	8	£7.73	0
K1595.051X40 View product	16	Black	M5	11.8	10.7	5.1	B	8.5	40	75 EPDM 295	0.5	1	8	£8.10	0
K1595.051X45 View product	16	Black	M5	11.8	10.7	5.1	B	8.5	45	75 EPDM 295	0.5	1	8	£8.85	0
K1595.051X50 View product	16	Black	M5	11.8	10.7	5.1	B	8.5	50	75 EPDM 295	0.5	1	8	£9.57	0
K1595.061X12 View product	--	Black	M6	14	13.1	6.1	A	9.2	12	75 EPDM 295	0.55	1	10	£7.43	0
K1595.061X16 View product	--	Black	M6	14	13.1	6.1	A	9.2	16	75 EPDM 295	0.55	1	10	£7.48	0
K1595.061X20 View product	--	Black	M6	14	13.1	6.1	A	9.2	20	75 EPDM 295	0.55	1	10	£7.60	0
K1595.061X25 View product	--	Black	M6	14	13.1	6.1	A	9.2	25	75 EPDM 295	0.55	1	10	£7.88	0
K1595.061X30 View product	18	Black	M6	14	13.1	6.1	B	9.2	30	75 EPDM 295	0.55	1	10	£8.21	0
K1595.061X35 View product	18	Black	M6	14	13.1	6.1	B	9.2	35	75 EPDM 295	0.55	1	10	£8.63	0
K1595.061X40 View product	18	Black	M6	14	13.1	6.1	B	9.2	40	75 EPDM 295	0.55	1	10	£9.01	0
K1595.061X45 View product	18	Black	M6	14	13.1	6.1	B	9.2	45	75 EPDM 295	0.55	1	10	£9.42	0
K1595.061X50 View product	18	Black	M6	14	13.1	6.1	B	9.2	50	75 EPDM 295	0.55	1	10	£9.95	0
K1595.061X60 View product	18	Black	M6	14	13.1	6.1	B	9.2	60	75 EPDM 295	0.55	1	10	£12.28	0
K1595.081X16 View product	--	Black	M8	18	16.9	8.1	A	11.7	16	75 EPDM 295	0.6	1	13	£10.78	0
K1595.081X20 View product	--	Black	M8	18	16.9	8.1	A	11.7	20	75 EPDM 295	0.6	1	13	£10.89	0
K1595.081X25 View product	--	Black	M8	18	16.9	8.1	A	11.7	25	75 EPDM 295	0.6	1	13	£11.18	0
K1595.081X30 View product	--	Black	M8	18	16.9	8.1	A	11.7	30	75 EPDM 295	0.6	1	13	£11.40	0
K1595.081X35 View product	--	Black	M8	18	16.9	8.1	A	11.7	35	75 EPDM 295	0.6	1	13	£11.88	0
K1595.081X40 View product	22	Black	M8	18	16.9	8.1	B	11.7	40	75 EPDM 295	0.6	1	13	£12.34	0
K1595.081X45 View product	22	Black	M8	18	16.9	8.1	B	11.7	45	75 EPDM 295	0.6	1	13	£13.07	0
K1595.081X50 View product	22	Black	M8	18	16.9	8.1	B	11.7	50	75 EPDM 295	0.6	1	13	£13.51	0
K1595.081X60 View product	22	Black	M8	18	16.9	8.1	B	11.7	60	75 EPDM 295	0.6	1	13	£14.54	0
K1595.081X70 View product	22	Black	M8	18	16.9	8.1	B	11.7	70	75 EPDM 295	0.6	1	13	£15.32	0
K1595.081X80 View product	22	Black	M8	18	16.9	8.1	B	11.7	80	75 EPDM 295	0.6	1	13	£17.78	0
K1595.101X20 View product	--	Black	M10	22	21.2	10.1	A	14	20	75 EPDM 295	0.75	1.5	16	£13.31	0
K1595.101X25 View product	--	Black	M10	22	21.2	10.1	A	14	25	75 EPDM 295	0.75	1.5	16	£13.44	0
K1595.101X30 View product	--	Black	M10	22	21.2	10.1	A	14	30	75 EPDM 295	0.75	1.5	16	£13.77	0
K1595.101X35 View product	--	Black	M10	22	21.2	10.1	A	14	35	75 EPDM 295	0.75	1.5	16	£14.33	0
K1595.101X40 View product	--	Black	M10	22	21.2	10.1	A	14	40	75 EPDM 295	0.75	1.5	16	£15.17	0
K1595.101X45 View product	26	Black	M10	22	21.2	10.1	B	14	45	75 EPDM 295	0.75	1.5	16	£15.69	0
K1595.101X50 View product	26	Black	M10	22	21.2	10.1	B	14	50	75 EPDM 295	0.75	1.5	16	£16.35	0
K1595.101X60 View product	26	Black	M10	22	21.2	10.1	B	14	60	75 EPDM 295	0.75	1.5	16	£17.23	0
