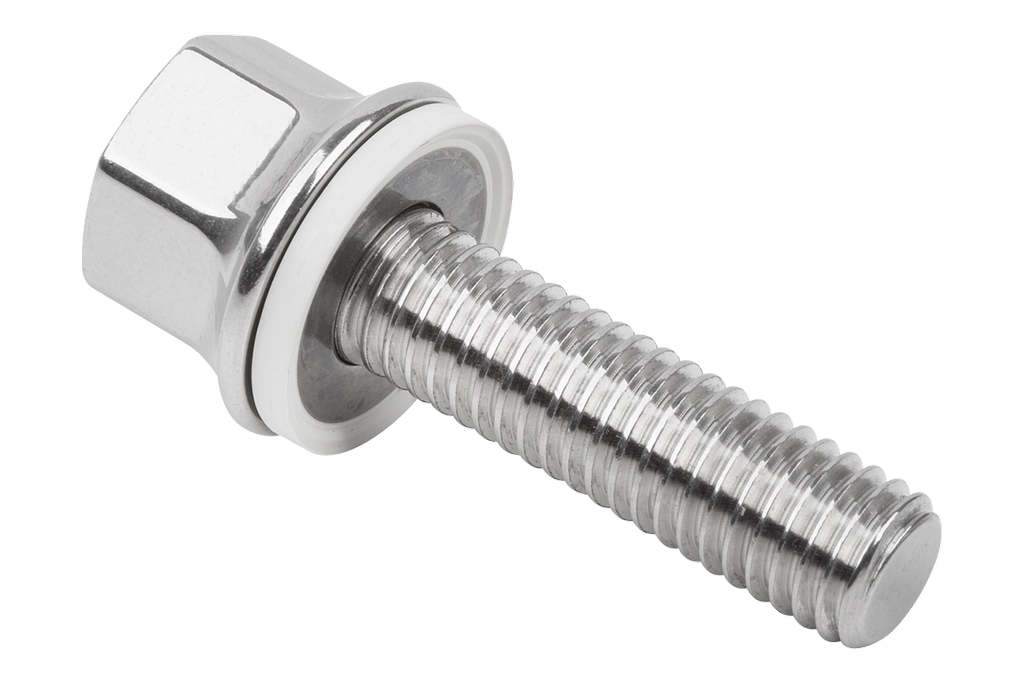

316 Stainless Steel Hex Head Screw With 70 EPDM 253815 (White) Seal

316 Stainless Steel Hex Head Screw With 70 EPDM 253815 (White) Seal

Product description:

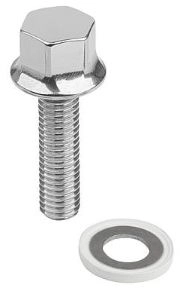

Set: hexagon head screw with collar K1492 + Hygienic USIT® seal and shim washer K1491.

Only the combination of a hexagon head screw with collar and the Hygienic USIT® seal and shim washer assures a cavity-free seal.

The hexagon head screw with collar for Hygienic USIT® seal and shim washers is ideal for fastening in sterile areas and also conforms to EHEDG regulations, which is confirmed with the relevant certificate.

Material:
Hexagon head screw: stainless steel 1.4404.
Washer: stainless steel 1.4404.

Seal ring:
70 EPDM 253815 (white).

Version:
Hexagon head screw: polished

Note:
The EHEDG certificate is only valid when a combination of hexagon head screw with collar K1492 and specially matched Hygienic USIT® seal and shim washer K1491 is used.

Attention:
The function of the Hygienic USIT® screw connection system has been tested in combination with stainless steel materials and standard cleaning materials.
The user must check that it is suitable for the application in question.

Suggested Accessories:
Cap nut with collar K1493.
Sockets with plastic inserts K1361.
Ring/open-end spanner with protective caps K1362.

Hygienic Hex Head Bolt With Hygienic Seal & Shim Washer. 70 EPDM 253815 White. M6x20mm. 316 Stainless Steel.

Select your sizes

Line drawing placeholder

Move drawing here

	B	Component colour	D	D1	D2	D3	Form	K	L	Material	R	S	SW	Price (Exc. Tax)	Stock
Filters
K1595.042X10 View product	--	White	M4	10.8	9.7	4.1	A	6.9	10	70 EPDM 253815	0.45	1	7	£8.81	0
K1595.042X12 View product	--	White	M4	10.8	9.7	4.1	A	6.9	12	70 EPDM 253815	0.45	1	7	£8.88	0
K1595.042X16 View product	--	White	M4	10.8	9.7	4.1	A	6.9	16	70 EPDM 253815	0.45	1	7	£9.02	0
K1595.042X20 View product	--	White	M4	10.8	9.7	4.1	A	6.9	20	70 EPDM 253815	0.45	1	7	£9.22	0
K1595.042X25 View product	14	White	M4	10.8	9.7	4.1	B	6.9	25	70 EPDM 253815	0.45	1	7	£9.54	0
K1595.042X30 View product	14	White	M4	10.8	9.7	4.1	B	6.9	30	70 EPDM 253815	0.45	1	7	£9.72	0
K1595.042X35 View product	14	White	M4	10.8	9.7	4.1	B	6.9	35	70 EPDM 253815	0.45	1	7	£9.99	0
K1595.042X40 View product	14	White	M4	10.8	9.7	4.1	B	6.9	40	70 EPDM 253815	0.45	1	7	£10.28	0
K1595.042X8 View product	--	White	M4	10.8	9.7	4.1	A	6.9	8	70 EPDM 253815	0.45	1	7	£8.76	0
K1595.052X10 View product	--	White	M5	11.8	10.7	5.1	A	8.5	10	70 EPDM 253815	0.5	1	8	£8.18	0
K1595.052X12 View product	--	White	M5	11.8	10.7	5.1	A	8.5	12	70 EPDM 253815	0.5	1	8	£8.23	0
K1595.052X16 View product	--	White	M5	11.8	10.7	5.1	A	8.5	16	70 EPDM 253815	0.5	1	8	£8.28	0
K1595.052X20 View product	--	White	M5	11.8	10.7	5.1	A	8.5	20	70 EPDM 253815	0.5	1	8	£8.57	0
K1595.052X25 View product	16	White	M5	11.8	10.7	5.1	B	8.5	25	70 EPDM 253815	0.5	1	8	£8.75	0
K1595.052X30 View product	16	White	M5	11.8	10.7	5.1	B	8.5	30	70 EPDM 253815	0.5	1	8	£9.20	0
K1595.052X35 View product	16	White	M5	11.8	10.7	5.1	B	8.5	35	70 EPDM 253815	0.5	1	8	£9.65	0
K1595.052X40 View product	16	White	M5	11.8	10.7	5.1	B	8.5	40	70 EPDM 253815	0.5	1	8	£10.09	0
K1595.052X45 View product	16	White	M5	11.8	10.7	5.1	B	8.5	45	70 EPDM 253815	0.5	1	8	£10.96	0
K1595.052X50 View product	16	White	M5	11.8	10.7	5.1	B	8.5	50	70 EPDM 253815	0.5	1	8	£11.79	0
K1595.062X12 View product	--	White	M6	14	13.1	6.1	A	9.2	12	70 EPDM 253815	0.55	1	10	£9.33	0
K1595.062X16 View product	--	White	M6	14	13.1	6.1	A	9.2	16	70 EPDM 253815	0.55	1	10	£9.39	0
K1595.062X20 View product	--	White	M6	14	13.1	6.1	A	9.2	20	70 EPDM 253815	0.55	1	10	£9.54	0
K1595.062X25 View product	--	White	M6	14	13.1	6.1	A	9.2	25	70 EPDM 253815	0.55	1	10	£9.86	0
K1595.062X30 View product	18	White	M6	14	13.1	6.1	B	9.2	30	70 EPDM 253815	0.55	1	10	£10.23	0
K1595.062X35 View product	18	White	M6	14	13.1	6.1	B	9.2	35	70 EPDM 253815	0.55	1	10	£10.75	0
K1595.062X40 View product	18	White	M6	14	13.1	6.1	B	9.2	40	70 EPDM 253815	0.55	1	10	£11.17	0
K1595.062X45 View product	18	White	M6	14	13.1	6.1	B	9.2	45	70 EPDM 253815	0.55	1	10	£11.63	0
K1595.062X50 View product	18	White	M6	14	13.1	6.1	B	9.2	50	70 EPDM 253815	0.55	1	10	£12.24	0
K1595.062X60 View product	18	White	M6	14	13.1	6.1	B	9.2	60	70 EPDM 253815	0.55	1	10	£14.92	0
K1595.082X16 View product	--	White	M8	18	16.9	8.1	A	11.7	16	70 EPDM 253815	0.6	1	13	£13.40	0
K1595.082X20 View product	--	White	M8	18	16.9	8.1	A	11.7	20	70 EPDM 253815	0.6	1	13	£13.53	0
K1595.082X25 View product	--	White	M8	18	16.9	8.1	A	11.7	25	70 EPDM 253815	0.6	1	13	£13.87	0
K1595.082X30 View product	--	White	M8	18	16.9	8.1	A	11.7	30	70 EPDM 253815	0.6	1	13	£14.13	0
K1595.082X35 View product	--	White	M8	18	16.9	8.1	A	11.7	35	70 EPDM 253815	0.6	1	13	£14.68	0
K1595.082X40 View product	22	White	M8	18	16.9	8.1	B	11.7	40	70 EPDM 253815	0.6	1	13	£15.21	0
K1595.082X45 View product	22	White	M8	18	16.9	8.1	B	11.7	45	70 EPDM 253815	0.6	1	13	£16.06	0
K1595.082X50 View product	22	White	M8	18	16.9	8.1	B	11.7	50	70 EPDM 253815	0.6	1	13	£16.59	0
K1595.082X60 View product	22	White	M8	18	16.9	8.1	B	11.7	60	70 EPDM 253815	0.6	1	13	£17.77	0
K1595.082X70 View product	22	White	M8	18	16.9	8.1	B	11.7	70	70 EPDM 253815	0.6	1	13	£18.67	0
K1595.082X80 View product	22	White	M8	18	16.9	8.1	B	11.7	80	70 EPDM 253815	0.6	1	13	£21.49	0
K1595.102X20 View product	--	White	M10	22	21.2	10.1	A	14	20	70 EPDM 253815	0.75	1.5	16	£16.51	0
K1595.102X25 View product	--	White	M10	22	21.2	10.1	A	14	25	70 EPDM 253815	0.75	1.5	16	£16.64	0
K1595.102X30 View product	--	White	M10	22	21.2	10.1	A	14	30	70 EPDM 253815	0.75	1.5	16	£17.01	0
K1595.102X35 View product	--	White	M10	22	21.2	10.1	A	14	35	70 EPDM 253815	0.75	1.5	16	£17.66	0
K1595.102X40 View product	--	White	M10	22	21.2	10.1	A	14	40	70 EPDM 253815	0.75	1.5	16	£18.64	0
K1595.102X45 View product	26	White	M10	22	21.2	10.1	B	14	45	70 EPDM 253815	0.75	1.5	16	£19.27	0
K1595.102X50 View product	26	White	M10	22	21.2	10.1	B	14	50	70 EPDM 253815	0.75	1.5	16	£20.03	0
K1595.102X60 View product	26	White	M10	22	21.2	10.1	B	14	60	70 EPDM 253815	0.75	1.5	16	£21.04	0
