Item Code: GH-32500-PRA

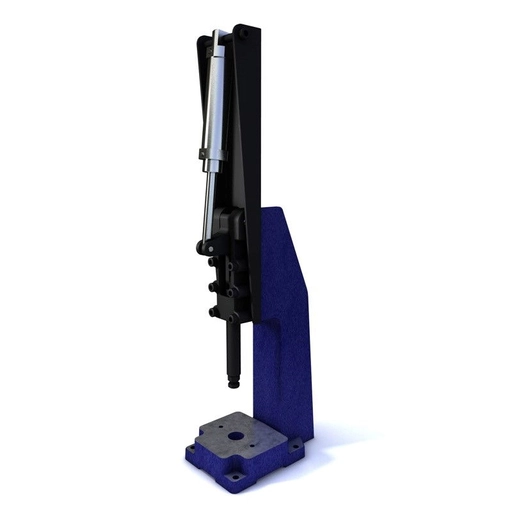

Pneumatic Toggle Press Plunger Stroke 50mm Clamp Size 2500Kg

Item Code: GH-32500-PRA

Pneumatic Toggle Press Plunger Stroke 50mm Clamp Size 2500Kg

GH-32500-PRA Pneumatic Toggle Press with Plunger Stroke 50mm and Clamp Size 2500daN

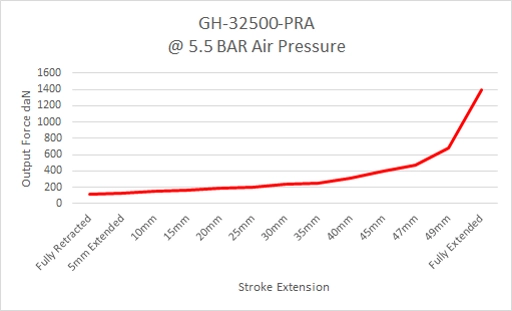

Output force at 5.5bar:
Fully retracted 120daN
5 mm extended 130daN
10 mm 150daN
15 mm 165daN
20 mm 190daN
25 mm 200daN
30 mm 235daN
35 mm 255daN
40 mm 315daN
45 mm 400daN
47 mm 470daN
49 mm 680daN
Fully extended 1400daN

What's In The Bag
GH-32500-PRA Toggle Clamp
SA-127517 Spindle With Nuts

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel

Quick Links

Dispatch by 16/06/25

£802.28  ea. Excl VAT £962.74  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
5 + £697.98 13%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Download STP

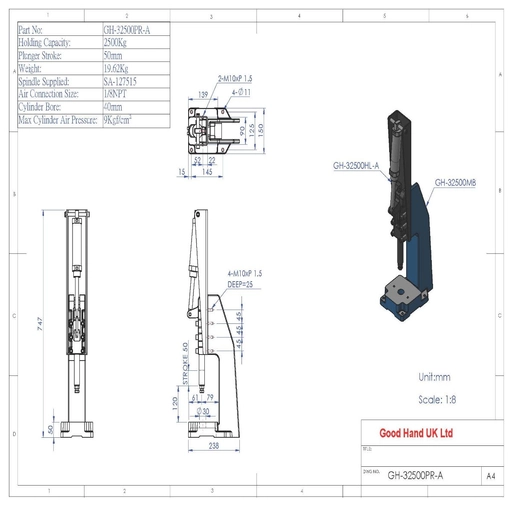

GH-32500-PRA Datasheet
