Item Code: GH-71220

Heavy Duty Toggle Clamp. Overall Height 279mm. Overall Length 124mm. Holding Force 1200daN.

Item Code: GH-71220

Heavy Duty Toggle Clamp. Overall Height 279mm. Overall Length 124mm. Holding Force 1200daN.

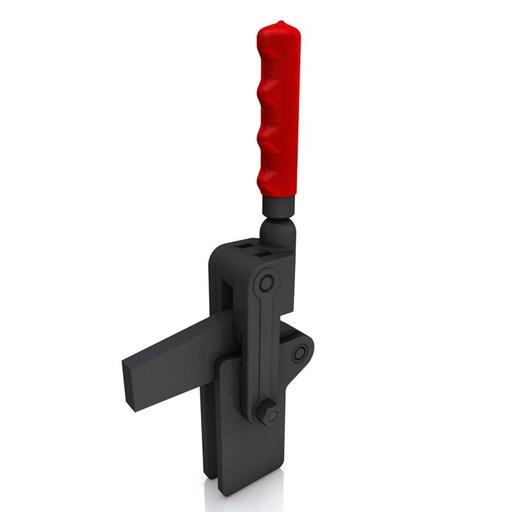

GH-71220 Heavy Duty Toggle Clamp with Straight Base and Solid Arm Size 1200daN

Holding Force: 1200daN
Arm Opens: 195°
Handle Opens: 130°
Weight: 1.8Kg
Spindle Supplied: SA-121017

What's In The Bag
GH-71220 Toggle Clamp
SA-121017 M12x100mm Spindle With Nuts
Bolt Retainer

Material
Clamp: Cast Iron
Accessories: Steel
Handle: uPVC

Note:- A spindle holder and spindle is supplied for welding onto the clamp arm at the desired length.

Quick Links

41 in stock

Solid
Straight
401+kg
251+mm
101-150mm
51+mm
26-50mm
M12
Qty
Qty
Qty

£93.37  ea. Excl VAT £112.04  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
10 + £81.23 13%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty

Quick Links



Arm TypeSolid
Base TypeStraight
Holding Force401+kg
Height251+mm
Total Length101-150mm
Underarm Height51+mm
Arm Length26-50mm
Spindle SizeM12
Download STP

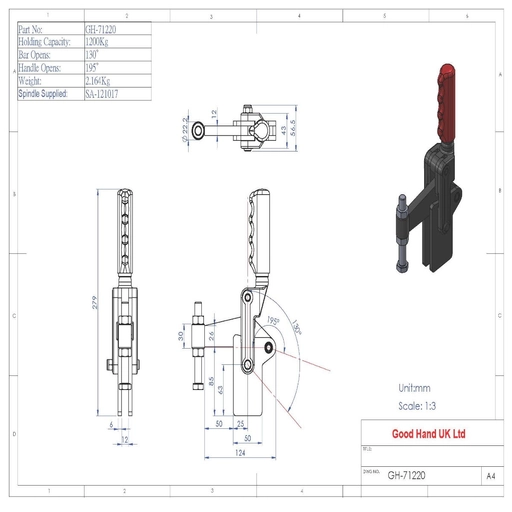

GH-71220 Datasheet
