Item Code: GH-70720

Heavy Duty Toggle Clamp. Overall Height 243mm. Overall Length 105mm. Holding Force 700daN.

Item Code: GH-70720

Heavy Duty Toggle Clamp. Overall Height 243mm. Overall Length 105mm. Holding Force 700daN.

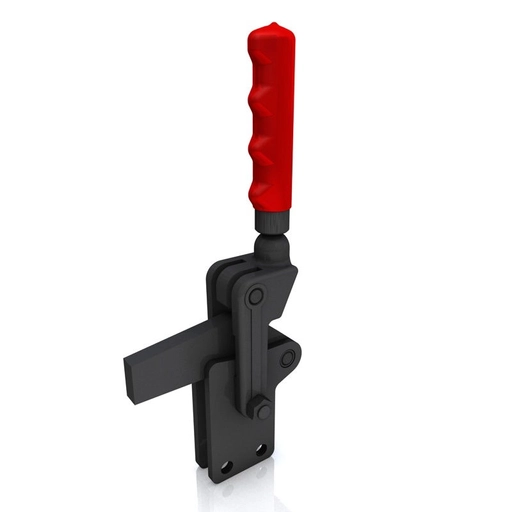

GH-70720 Heavy Duty Toggle Clamp with Straight Base and Solid Arm Size 700daN

Holding Force: 700daN
Arm Opens: 205°
Handle Opens: 130°
Weight: 1.1Kg
Spindle Supplied: SA-121017

What's In The Bag
GH-70720 Toggle Clamp
SA-121017 M12x100mm Spindle With Nuts
Bolt Retainer

Material
Clamp: Cast Iron
Accessories: Steel
Handle: uPVC

Note:- A spindle holder and spindle is supplied for welding onto the clamp arm at the desired length.

Quick Links

50+ in stock

26-50mm
Solid
Straight
201-250mm
401+kg
M12
101-150mm
51+mm
Qty
Qty
Qty

£75.74  ea. Excl VAT £90.89  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
10 + £65.89 13%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty

Quick Links



Arm Length26-50mm
Arm TypeSolid
Base TypeStraight
Height201-250mm
Holding Force401+kg
Spindle SizeM12
Total Length101-150mm
Underarm Height51+mm
Download STP
GH-70720 Datasheet
