Item Code: GH-70533

Heavy Duty Toggle Clamp. Overall Height 214mm. Overall Length 123mm. Holding Force 700daN.

Item Code: GH-70533

Heavy Duty Toggle Clamp. Overall Height 214mm. Overall Length 123mm. Holding Force 700daN.

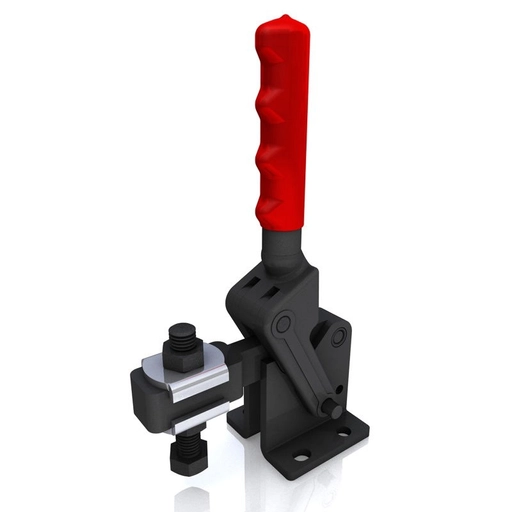

GH-70533 Heavy Duty Toggle Clamp with Flat Base and Slotted Arm Size 700daN

Holding Force: 700daN
Arm Opens: 123°
Handle Opens: 82.5°
Weight: 1.26Kg
Spindle Supplied: SA-127517

What's In The Bag
GH-70533 Toggle Clamp
SA-127517 M12x75mm Spindle With Nuts
FW-120 Flanged Washers

Material
Clamp: Cast Iron
Accessories: Steel
Handle: uPVC

Quick Links

12 in stock

51-75mm
Adjustable
Flat
201-250mm
401+kg
M12
101-150mm
41-50mm
Qty
Qty
Qty

£107.07  ea. Excl VAT £128.48  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
10 + £93.15 13%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty

Quick Links



Arm Length51-75mm
Arm TypeAdjustable
Base TypeFlat
Height201-250mm
Holding Force401+kg
Spindle SizeM12
Total Length101-150mm
Underarm Height41-50mm
Download STP

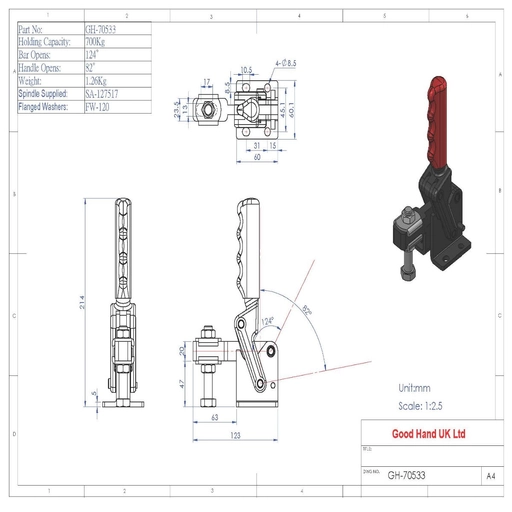

Gh-70533 Datasheet
