Item Code: GH-12265-A

Pneumatic Toggle Clamp. Overall Length 302.7mm. Overall Height 99mm. Holding Force 340daN.

Item Code: GH-12265-A

Pneumatic Toggle Clamp. Overall Length 302.7mm. Overall Height 99mm. Holding Force 340daN.

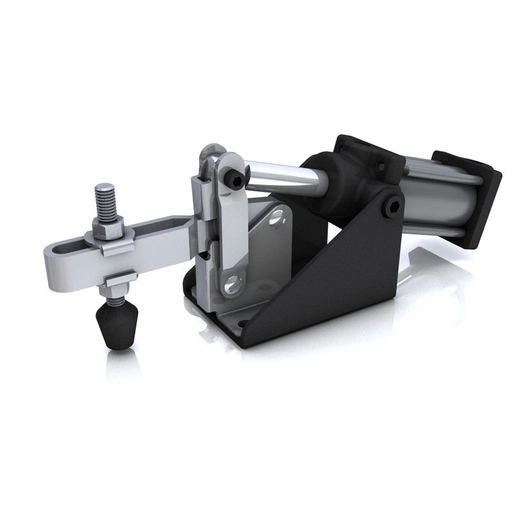

GH-12265-A Pneumatically Operated Vertical Toggle Clamp with Slotted Arm Size 340daN

Holding Force: 340daN
Arm Opens: 86°
Weight: 0.50Kg
Spindle Supplied: FC-108515
Flanged Washers Supplied: FW-380
Optional Magnetic Sensors: MT-22
Port Size: 1/8"

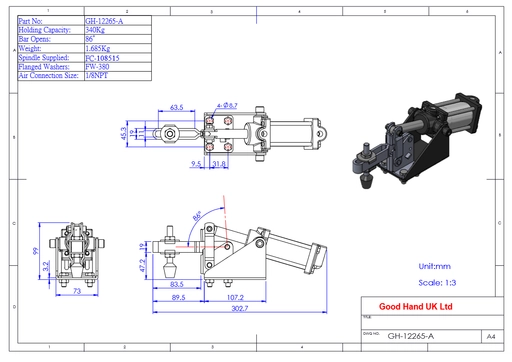

For other dimensions see GH-12265

What's In The Bag
GH-12265-A Toggle Clamp
FC-108515 Spindle With Nuts
FW-380 Flanged Washers

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel

Quick Links

11 in stock

76-100mm
Adjustable
Flat
51-100mm
301-400kg
251+mm
41-50mm
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£227.58  ea. Excl VAT £273.10  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
10 + £197.99 13%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm Length76-100mm
Arm TypeAdjustable
Base TypeFlat
Height51-100mm
Holding Force301-400kg
Total Length251+mm
Underarm Height41-50mm
Download STP
