Item Code: GH-10750-A

Pneumatic Toggle Clamp. Overall Length 243.5mm. Overall Height 52mm. Holding Force 75daN.

Pneumatic Toggle Clamp. Overall Length 243.5mm. Overall Height 52mm. Holding Force 75daN.

Item Code: GH-10750-A

Pneumatic Toggle Clamp. Overall Length 243.5mm. Overall Height 52mm. Holding Force 75daN.

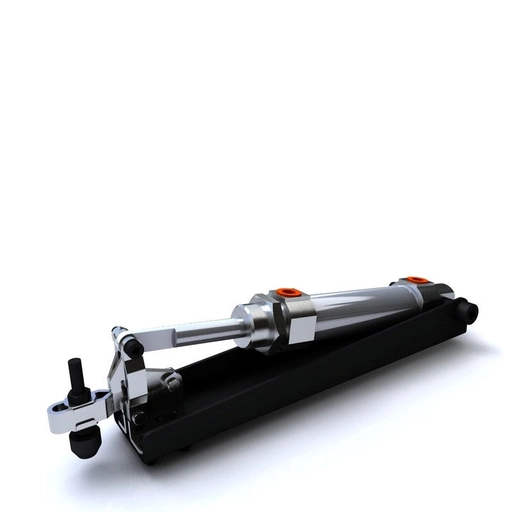

GH-10750-A Pneumatic Vertical Toggle Clamp with Slotted Arm Size 75daN

Holding Force: 75daN
Arm Opens: 70°
Weight: 0.6Kg
Spindle Supplied: SA-053508+NC-05
Flanged Washers Supplied: FW-100
Optional Magnetic Sensors: MT-22
Port Size: 1/8"

What's In The Bag
GH-10750-A Toggle Clamp
SA-053508 Spindle With Nuts
FW-100 Flanged Washers
NC-05 Neoprene Cap

Material
Clamp: Zinc Plated Mild Steel
Spindle: Neoprene Tipped Steel

Quick Links

10 in stock

26-50mm
Adjustable
Flat
51-100mm
0-100Kg
201-250mm
0-20mm
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£170.93  ea. Excl VAT £205.12  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
10 + £148.71 13%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Arm Length26-50mm
Arm TypeAdjustable
Base TypeFlat
Height51-100mm
Holding Force0-100Kg
Total Length201-250mm
Underarm Height0-20mm
Download STP

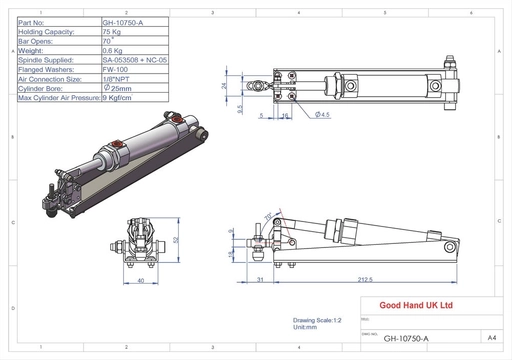

GH-10750-A Datasheet
