Item Code: GH-36301M-A

Pneumatic Toggle Clamp. Stroke 6.8mm. Overall Length 186.2mm. Holding Force 45daN

Item Code: GH-36301M-A

Pneumatic Toggle Clamp. Stroke 6.8mm. Overall Length 186.2mm. Holding Force 45daN

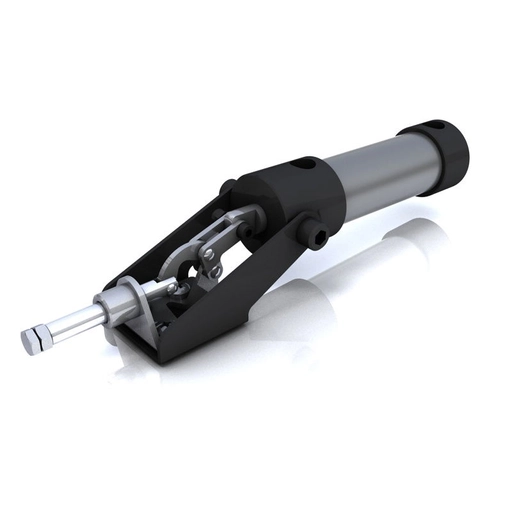

GH-36301M-A Pneumatic Toggle Clamp with Plunger Stroke 6.8mm Size 45daN

Holding Force: 45daN
Plunger Stroke: 6.5mm
Weight: 0.35Kg
Spindle Supplied: SA-042007
Optional Magnetic Sensors: MT-22
Port Size: 1/8"

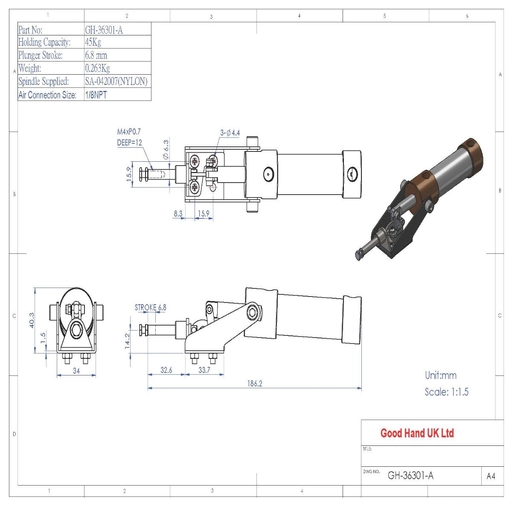

For other dimensions see GH-301-AM

What's In The Bag
GH-36301M-A Toggle Clamp
SA-042007 Spindle With Nuts

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel

Quick Links

12 in stock

0-100Kg
0-50mm
151-200mm
0-20mm
26-50mm
0-20mm
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

£170.42  ea. Excl VAT £204.50  ea. Inc VAT

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
10 + £148.27 13%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty
Qty

Quick Links



Holding Force0-100Kg
Height0-50mm
Total Length151-200mm
Underarm Height0-20mm
Arm Length26-50mm
Plunger Stroke0-20mm
Download STP
