Item Code: GH-36330M-A

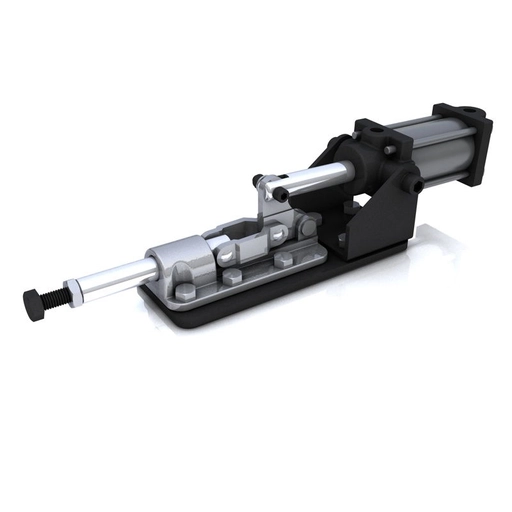

Pneumatic Toggle Clamp. Stroke 30.4mm. Overall Length 347mm. Holding Force 1136daN

Item Code: GH-36330M-A

Pneumatic Toggle Clamp. Stroke 30.4mm. Overall Length 347mm. Holding Force 1136daN

GH-36330M-A Pneumatic Toggle Clamp with Plunger Stroke 31.8mm Size1136daN

Holding Force: 1135daN
Plunger Stroke: 30mm
Weight: 1.14Kg
Spindle Supplied: SA-106515
Optional Magnetic Sensors: MT-22
Port Size: 1/8"

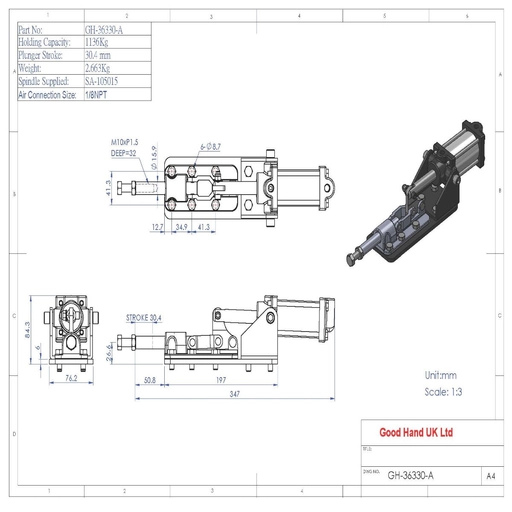

For other dimensions see GH-36330M

What's In The Bag
GH-36330M-A Toggle Clamp
SA-106515 Spindle With Nuts

Material
Clamp: Zinc Plated Mild Steel
Spindle: Steel
