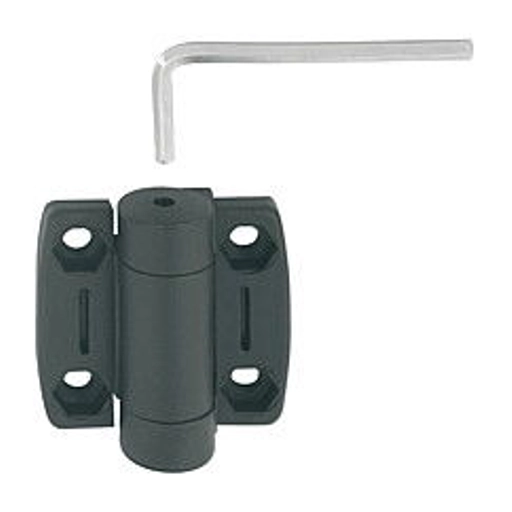

HINGE W. ADJ. FRICTION 54X56, THERMOPLASTIC BLACK, COMP:STAINLESS STEEL, A1=17,75, A2=17,75, A3=27, A4=27

Item Code: K0440.56181806

HINGE W. ADJ. FRICTION 54X56, THERMOPLASTIC BLACK, COMP:STAINLESS STEEL, A1=17,75, A2=17,75, A3=27, A4=27

Item Code: K0440.56181806

HINGE W. ADJ. FRICTION 54X56, THERMOPLASTIC BLACK, COMP:STAINLESS STEEL, A1=17,75, A2=17,75, A3=27, A4=27

Material:

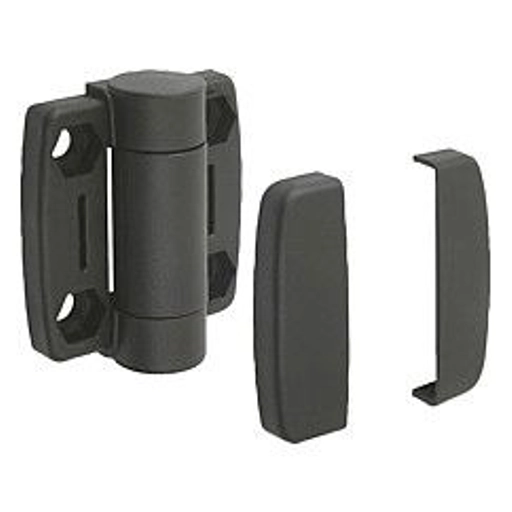

Hinge and coverings, glass-fibre reinforced thermoplastic PA;
steel parts in stainless steel Surface finish:
Hinge and coverings black;
steel parts natural finish Note:
The friction hinges allow door positioning in any angular position desired. Friction resistance can be continuously adjusted by means of an adjusting screw of 0-5 Nm. The hinges are available with or without guide tabs for aluminium profiles.

Quick Links

6 in stock

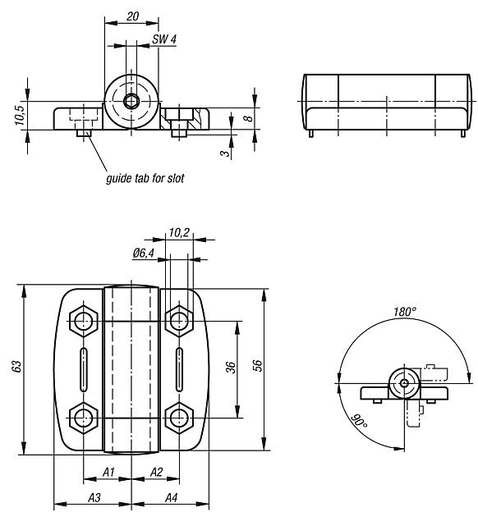

A: 54

B: 56

A1: 17,75

A2: 17,75

A3: 27

A4: 27

F1 N: 400

F2 N: 325

Guide tabs for slot: 6

£11.39 ea. Excl VAT £13.67 ea. Inc VAT
