Item Code: K0368.21056

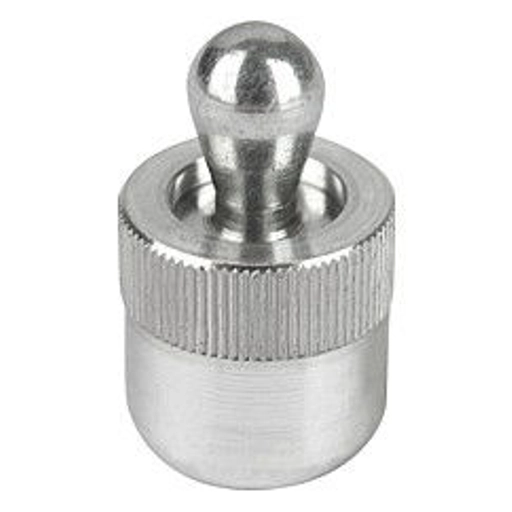

Lateral Spring Plunger. Hole Diameter 10mm. Pin Height 11mm. Pin Diameter 5mm. Aluminium.

Item Code: K0368.21056

Lateral Spring Plunger. Hole Diameter 10mm. Pin Height 11mm. Pin Diameter 5mm. Aluminium.

Material:
Sleeve in aluminium.
Spring in steel.
Pressure pin in steel or in plastic. Surface finish:
Pressure pin (steel) surface hardened and galvanized.
Sleeve blue galvanized. Note:
Lateral spring plungers aid in the positioning and clamping, holding and fastening of tools and parts during engraving, labelling, drilling, galling, threading, honing, grinding, welding, soldering, hard-facing, assembling, etc.
In order to position, see K0369 for suitable eccentric bushes.
W and Z according to customer specifications.

Quick Links

Dispatch by 04/07/25

0,8
10
5
10
50
11
6,7
1,5
1,7
1,7
1,7
1,7

£5.46  ea. Excl VAT £6.55  ea. Inc VAT

This product is currently out of stock. Your item will be shipped when it is back in stock.

Qty

Product Wishlist & Compare Placeholder

Qty Price per item Savings
25 + £4.48 18%

Free Standard Delivery over £75 ex VAT

Spend another £75 to qualify



modal placeholder

Quick Links



Material:
Sleeve in aluminium.
Spring in steel.
Pressure pin in steel or in plastic. Surface finish:
Pressure pin (steel) surface hardened and galvanized.
Sleeve blue galvanized. Note:
Lateral spring plungers aid in the positioning and clamping, holding and fastening of tools and parts during engraving, labelling, drilling, galling, threading, honing, grinding, welding, soldering, hard-facing, assembling, etc.
In order to position, see K0369 for suitable eccentric bushes.
W and Z according to customer specifications.

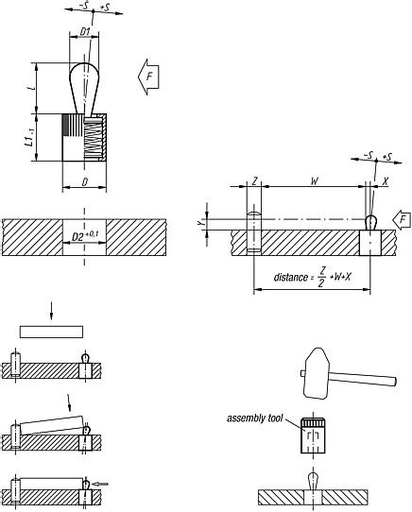

±S0,8
D10
D15
D210
F ca.N50
L11
L16,7
X if Y = 21,5
X if Y = 31,7
X if Y = 4,51,7
X if Y = 61,7
X if Y = 81,7
Thread Size / Body Diameter10mm
Length11mm
Body MaterialAluminium
Ball / Pin MaterialSteel
Thread LockNo
